XOF Max Series Versatile DOOH Advertising Solution
500*250 Energy-Saving Module with profile aluminium cabinet
1000*1000mm Cabinet
| Model | XOF-M2.9 | XOF-M3.9 | XOF-M4.8 | XOF-M4.8 | XOF-M6.2 | XOF-M7.8 |
| Pixel Pitch(mm) | 2.97 | 3.91 | 4.81 | 6.25 | 7.8 | 10.42 |
| Pixel Density(pixels/㎡) | 112,896 | 65,536 | 43,264 | 25,600 | 16,384 | 112,896 |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Size(W*H) | 500*250mm | |||||
| Module Resolution(W*H) | 168*64 dots | 128*64 dots | 104*52 dots | 80*40 dots | 64*32 dots | 48*24dots |

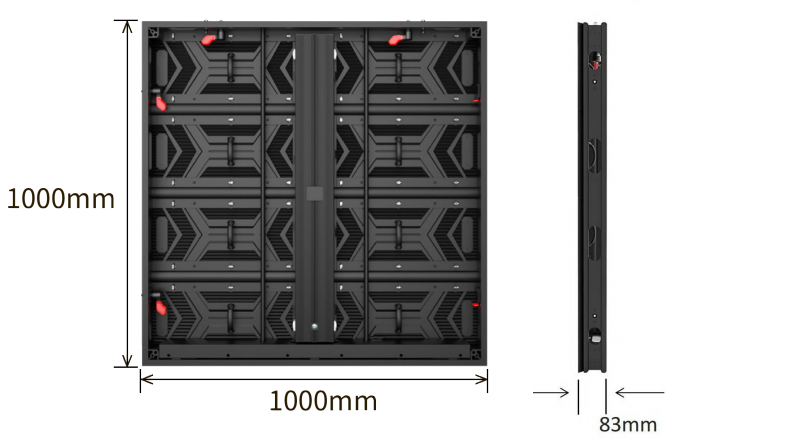

| Panel Size(W*H*D) | 1000*1000*83mm | |||||
| Panel Resolution(W*H) | 336*336 | 256*256 | 208*208 | 160*160 | 128*128 | 96*96 |
| Panel Material | Aluminum | |||||
| Panel Weight(kg) | 25kg | |||||
| Input Voltage | AC 100-240V | |||||
| Brightness(cd/㎡) | 4500-8000 | 6000-10000 | ||||
| Brightness Adjustment | Programmable/Automatic/Manual | |||||
| Viewing Angle(H/V) | 140°/140° | |||||
| Gray Scale(bit) | 13/14 | |||||
| Refresh Rate(Hz) | 3840/7680 | |||||
| Contrast Ratio | 5000:1 | |||||
| Color Temperature(K) | 2000-10000 (Adjustable) | |||||
| Max/Avg. Power Consumption(w/㎡) | 650/200(Common Cathode),880/350(Common Anode) | |||||
| Serviceability | Front/Rear | |||||
| IP Rating | IP65 | |||||
| Working Life(Hours) | 100,000 | |||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV | |||||

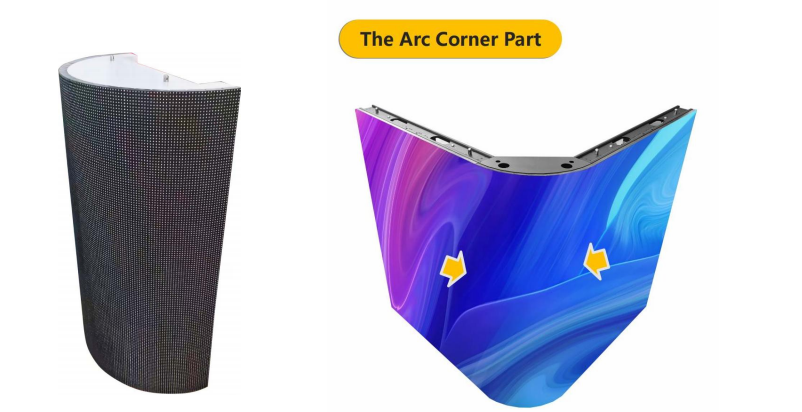

| Curvature | Standard Arc ﹣15°/﹣10°/﹣5°/0°/5°/10°/15° | |||||
