| Model | XSO6.67 | XSO8 | XSO10 | |
| Pixel Pitch(mm) | 6.67 | 8 | 10 | |
| Pixel Density(pixels/㎡) | 22500 | 15625 | 10000 | |
| LED Type | SMD | |||
| Module Size(W*H) | 480*320mm | |||
| Module Resolution(W*H) | 72*48dots | 60*40dots | 48*32dots | |
| Panel Size(W*H*D) | 960*1025*92mm | |||
| Panel Resolution(W*H) | 144*144 | 120*120 | 96*96 | |
| Panel Material | Aluminum | |||
| Panel Weight(Kg) | 30kg | |||
| Input Voltage | AC 100-240v | |||
| Brightness(cd/㎡) | 5000-10000 | |||
| Brightness Adjustment | Programmable/Automatic/Manual | |||
| Viewing Angle(H/V) | 160°/100° | |||
| Gray Scale(bit) | 14 | |||
| Refresh Rate(Hz) | 3840/7680 | |||
| Contrast Ratio | 7000:01:00 | |||
| Color Temperature(K) | 2000~10000 (Adjustable) | |||
| Max./Avg.Power Consumption(w/㎡） | 700/200 | |||

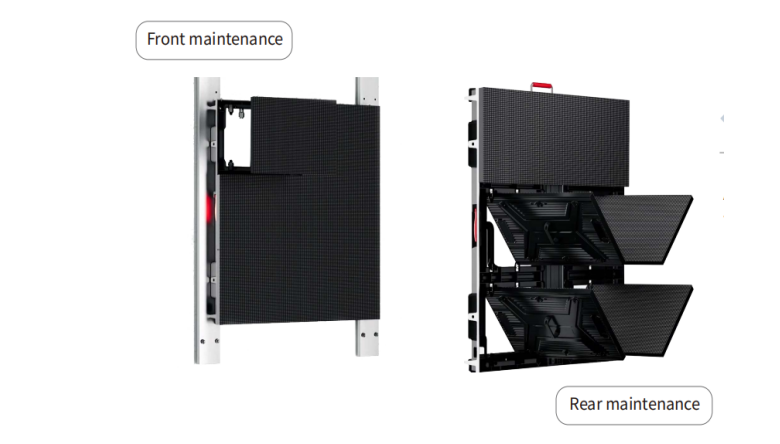

| Serviceability | Front/Rear | |||
| IP Rating | IP65 | |||
| Working life(Hours) | 100000 | |||
