| Model No. | XRP1.9 | XRP2.6 | XRP2.9 | XRP3.9 | XRPO2.6 | XRPO2.9 | XRPO3.9 |
| Pixel Pitch (mm) | 1.953 | 2.6 | 2.97 | 3.91 | 2.6 | 2.97 | 3.91 |
| Pixel Density (pixels/m²) | 278,784 | 147,456 | 112,896 | 65,536 | 147,456 | 112,896 | 65,536 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module Size (W*H) | 500*250mm | ||||||
| Module Resolution (W*H) | 256*128dots | 192*96dots | 168*84dots | 128*64dots | 192*96dots | 168*84dots | 128*64dots |
| Panel Size (W*H*D) | 500*500*68 / 500*1000*68mm | ||||||
| Panel Resolution (W*H) | 256*256 / 256*512 | 192*192 / 192*384 | 168*168 / 168*336 | 128*128 / 128*256 | 192*192 / 192*384 | 168*168 / 168*336 | 128*128 / 128*256 |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight (kg) | 7.5/12.5 | ||||||
| Input Voltage | AC 100-240V | ||||||
| Brightness (cd/m²) | 900 | 4,000 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||||
| Viewing Angle (H/V) | 140°/140° | ||||||
| Gray Scale (bit) | 13/14 | ||||||
| Refresh Rate (Hz) | 3,840/7,680 | ||||||
| Contrast Ratio | 7,000:1 | 5,000:1 | |||||
| Color Temp (K) | 2,000~10,000 (Adjustable) | ||||||
| Max/Avg Power (W/m²) | 550/175 | 750/250 | |||||

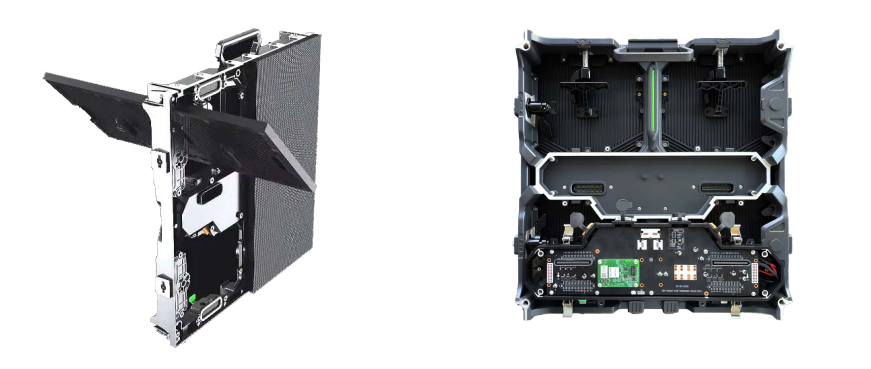

| Serviceability | Front/Rear | ||||||
| IP Rating | IP30 | IP65 | |||||
| Working Life (Hours) | 100,000 | ||||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV | ||||||

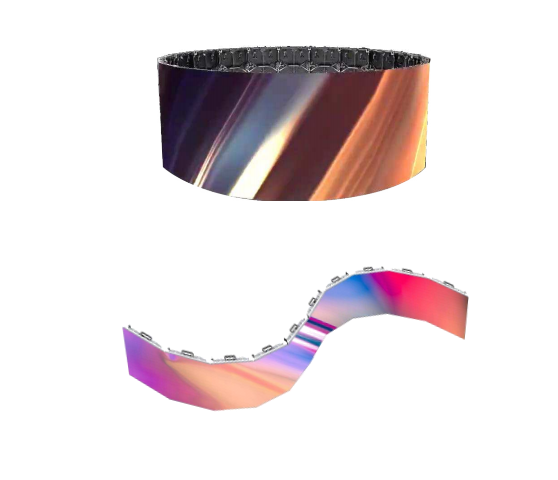

| Curvature | Standard Arc (-10°/-5°/0°/5°/10°/15°) | ||||||
