XRS Seriel Rental LED display for indoor and outdoor events 500*500mm 500*1000mm
Ultra-light and thin 6.6 -10.5KG
Unique and Private Model Cabinet Exquisite Craft
IP Rating(Front IP65 / Rear IP54)
Hign brintness,High refresh rate 7680hz , High Gray Scale 16Bit

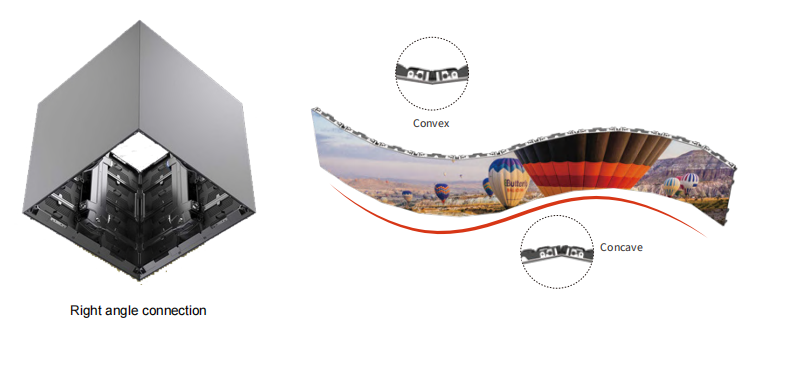

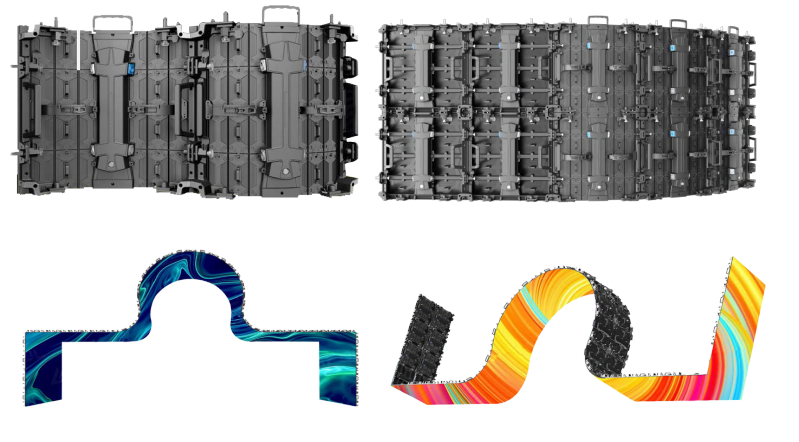

Curve Standard Arc 3*, 0, +6°
| Model | XRS1.9 | XRS2.6 | XRS2.9 | XRS3.9 | XRSO2.9 | XRSO3.9 | XRSO4.8 |
| Pixel Pitch(mm) | 1.953 | 2.6 | 2.97 | 3.91 | 2.977 | 3.91 | 4.81 |
| Pixel Density(pixels/m²) | 278784 | 147456 | 112896 | 65536 | 112896 | 65536 | 43264 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1921 | SMD1921 |
| Module Size(W*H) | 500*125mm | ||||||
| Module Resolution(W*H) | 128*34 dots | 96*24 dots | 84*21 dots | 64*16 dots | 84*21 dots | 64*16 dots | 52*13 dots |
| Panel Size(W*H*D) | 500*500*65/500*1000*6 | 5mm | |||||
| Panel Resolution(W*H) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight(Kg) | 6.6kg/11.5kg | ||||||
| Input Voltage | AC 100-240V | ||||||
| Brightness(cd/m) | 800～1000 | 4000～4500 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||||
| Viewing Angle(H/V) | 160°/140° | ||||||
| Gray Scale(bit) | 13/14 | ||||||
| Refresh Rate(Hz) | 3840 | ||||||
| Contrast Ratio | 5000:1 | 4000:1 | |||||
| Color Temperature(K) | 2000~10000 (Adjustable) | ||||||
| Max./Avg.Power Consumption(W/m²) | 550/175 | 550/175 | 550/175 | 550/175 | 750/250 | 750/250 | 750/250 |
| Serviceability | Front/Rear | ||||||
| IP Rating | IP30 | IP65 | |||||
| Working life(Hours) | 100000 | ||||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV | ||||||
| Curve | Standard Arc 3°,0,±6° | ||||||
