Indoor Fixed LED Display XIF Series
Indoor Fixed Installation LED Visual Solution

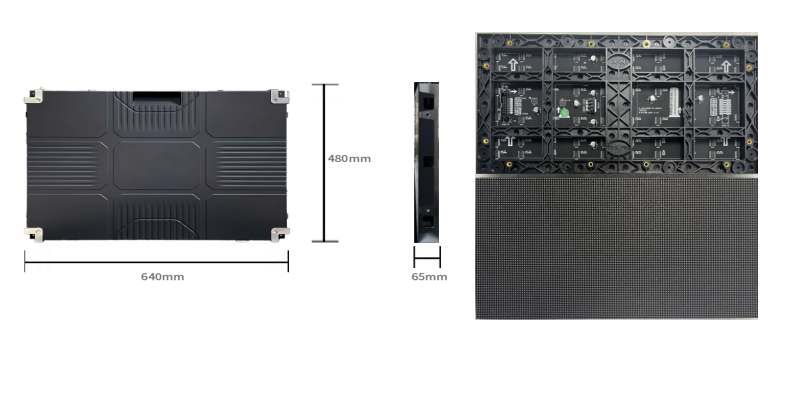

Cabinet 640*480mm
| Model | XIF1.2 | XIF1.5 | XIF1.8 | XIF2 | XIF2.5 |
| Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 2 | 2.5 |
| Pixel Density(pixels/㎡) | 640,000 | 418,889 | 286,667 | 250,000 | 160,000 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
| Module Size(W*H) | 320*160mm | ||||
| Module Resolution(W*H) | 256*128 dots | 208*104 dots | 172*86 dots | 160*80 dots | 128*64 dots |
| Panel Size(W*H*D) | 640*480 | ||||
| Panel Resolution(W*H) | 512*384 dots | 416*312 dots | 344*258 dots | 320*240 dots | 256*192 dots |
| Panel Material | Die-cast Aluminum | ||||
| Panel Weight(kg) | 7kg | ||||
| Input Voltage | AC 100-240V | ||||
| Brightness(cd/㎡) | 600～800 | ||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||
| Viewing Angle(H/V) | 140°/140° | ||||
| Gray Scale(bit) | 13/14 | ||||
| Refresh Rate(Hz) | 3840/7680 | ||||
| Contrast Ratio | 7000:1 | ||||
| Color Temperature(K) | 2000-10000 (Adjustable) | ||||
| Max/Avg. Power Consumption(w/㎡) | 550/150 | ||||
| Serviceability | Front/Rear | ||||
| IP Rating | IP30 | ||||
| Operating Temperature | -40～60℃ | ||||
| Operating Humidity(RH) | 10%～60% | ||||
| Working Life(Hours) | 100000 | ||||
