XRF Series supports both indoor and outdoor
Flexible Rental LED DisplayFor Creative Event & Stage Visual Solution
Cabinet:500*500mm
| Model | XRF1.9 | XRF2.6 | XRF2.9 | XRF3.9 | XRFO2.9 | XRFO3.9 |
| Pixel Pitch (mm) | 1.95 | 2.6 | 2.97 | 3.91 | 2.97 | 3.91 |
| Pixel Density (pixels/m²) | 278,784 | 147,456 | 112,896 | 65,536 | 112,896 | 65,536 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1921 |
| Module Size (W*H) | 500*250mm | |||||
| Module Resolution (W*H) | 256*128dots | 192*96dots | 168*84dots | 128*64dots | 168*84dots | 128*64dots |
| Panel Size (W*H*D) | 500*500*68mm | |||||
| Panel Resolution (W*H) | 256*256 dots | 192*192 dots | 168*168 dots | 128*128 dots | 168*168 dots | 128*128 dots |
| Panel Material | Die-casting Aluminum | |||||
| Panel Weight (kg) | 7.5 | |||||
| Input Voltage | AC 100-240V | |||||
| Brightness (cd/m²) | 900 | 3500-5500 | ||||
| Brightness Adjustment | Programmable/Automatic/Manual | |||||
| Viewing Angle (H/V) | 140°/140° | |||||
| Gray Scale (bit) | 13/14 | |||||
| Refresh Rate (Hz) | 3,840/7,680 | |||||
| Contrast Ratio | 7,000:1 | 5,000:1 | ||||
| Color Temp (K) | 2,000~10,000 (Adjustable) | |||||
| Max/Avg Power (W/m²) | 550/150 | 700/200 | ||||
| Serviceability | Front/Rear | |||||
| IP Rating | IP30 | IP65 | ||||
| Working Life (Hours) | 100,000 | |||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV | |||||

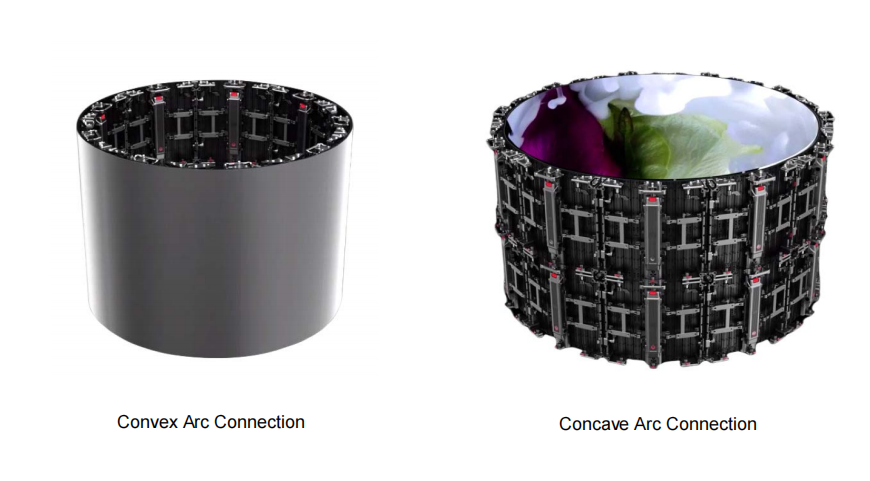

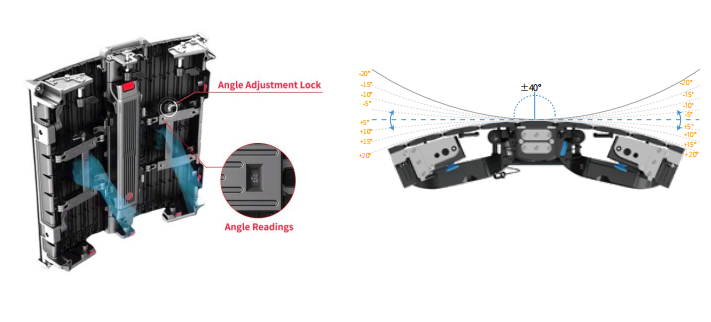

| Curvature | Standard Arc (-20°/-15°/-10°/-5°/0°/5°/10°/15°/20°) | |||||
