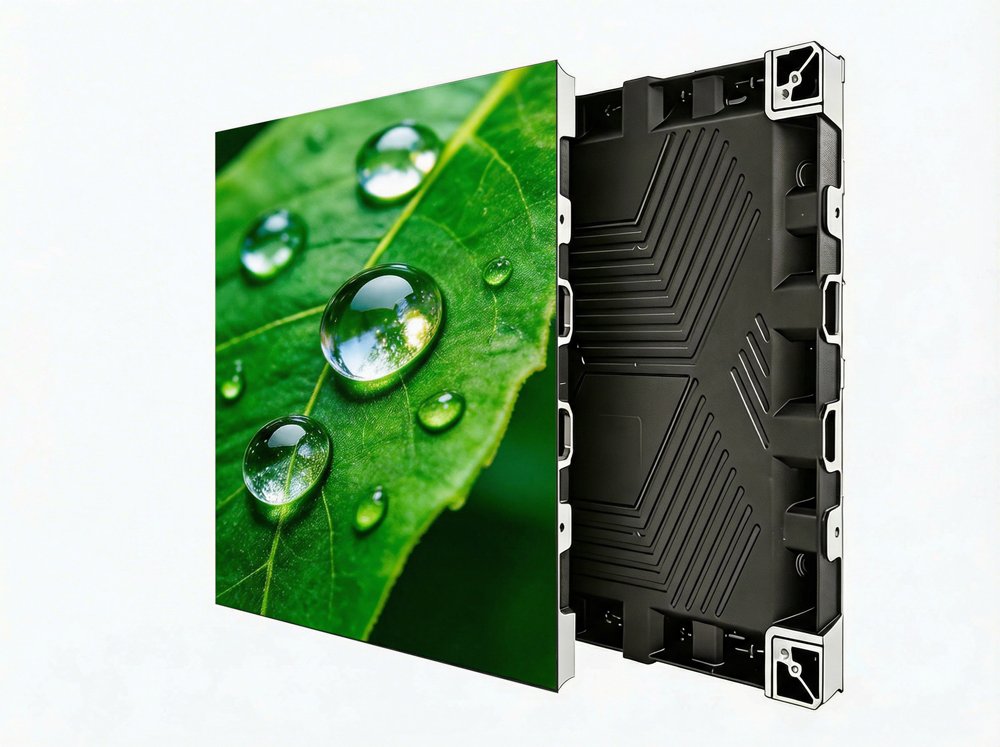

XFC Ace COB LED Display P1.25–P1.9: 8K Cinema Grade Indoor LED Wall

① Flip Chip COB — Zero Wire Bond Architecture

Inverted LED die bonded via metal bumps. No gold wire connections — no oxidation, no vibration breakage, no electrostatic failure. The result is a fully sealed monolithic surface rated IP54 (front), with a thermal path 40% shorter than face-up COB packaging.

② 8K Ultra HD Ready

XFCA1.2 (P1.25) at 640,000 pixels/m² supports true 8K (7,680×4,320) at 10 m × 5.5 m screen size. Full HDMI 2.1 / DisplayPort 1.4 signal chain compatibility.

③ 10,000:1 Cinema-Grade Contrast with HDR

Deep black processing, 14-bit grayscale, and native HDR support deliver ink-black backgrounds and precise highlight rendering — matching commercial cinema display standards.

④ Fanless · 0 dB · Passive Cooling

Flip Chip's direct chip-to-substrate thermal path requires no active cooling. Zero fan noise — essential for cinema, screening rooms, and boardrooms with sub-40 dB acoustic requirements.

⑤ Low Blue Light · Eye-Protective Area Light Source

Area light source structure reduces blue spectral peak vs SMD point sources. Minimal radiation, low surface heat, zero noise — designed for 8–12 hour continuous daily viewing.

⑥ 50 mm Slim · 6.5 kg Lightweight Cabinet

Die-cast aluminum at only 50 mm depth and 6.5 kg per panel. Single-person handleable, minimal structural loading, and an elegant architectural profile.

⑦ Full Front Access Maintenance

Modules and PSUs both detach from the front face without tools. Eliminates the 600–800 mm rear maintenance corridor — critical for recessed wall and column installations.

⑧ 90° Corner Splicing via 45° Beveled Edge

Native right-angle corner splicing from standard cabinet geometry. L-shaped screens, 360° column wraps, and six-sided cube displays — no adapters, no custom parts required.

⑨ Three Cabinet Sizes · Universal Aspect Ratio

500×500, 500×1000, and 500×250 mm panels combine freely. Supports 16:9, 32:9, portrait, and fully custom ratios. Mixed-pitch on a single frame is supported.

⑩ 100,000-Hour Life · −40°C to +60°C Range

Built for 24/7 operation. Brightness consistency 98% and chromaticity consistency 0.003 ΔCx, ΔCy ensure video wall uniformity over the full product lifetime.

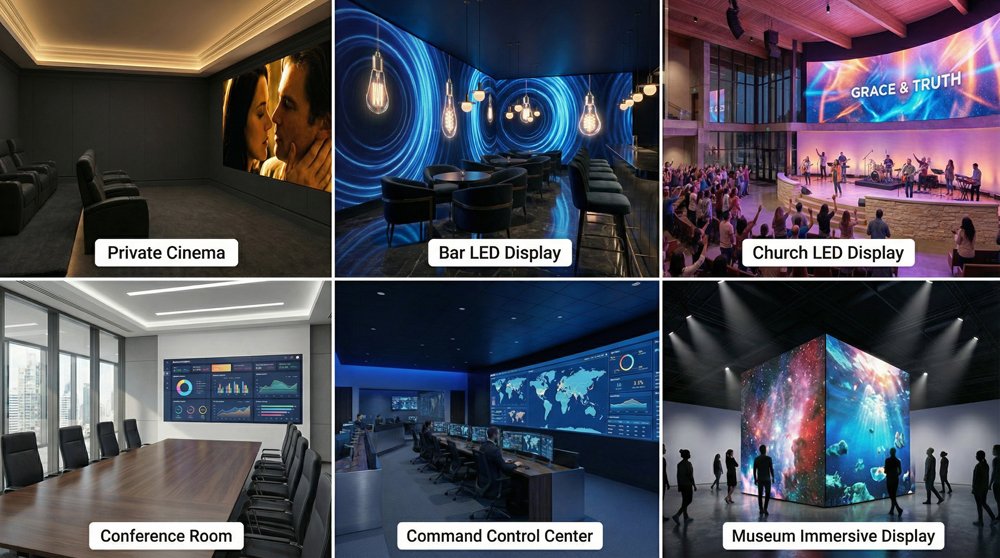

① Wall-Mount

Surface or recessed mount. No rear access space required — full front serviceability applies in all recessed configurations. Recommended for boardrooms, control rooms, hotel lobbies, and retail.

② Hanging / Suspended

Ceiling suspension via rigging hardware and safety cables. For large-span walls where direct wall mounting is not structurally available. Recommended for exhibition halls, auditoriums, event venues.

③ Floor Stack

Panels stacked on floor base frame. Fast deployment, no wall fixings. Recommended for showrooms, temporary events, and rental applications.

④ 90° Corner Splicing

45-degree beveled cabinet edge — unique to XFC Ace Series. Enables:

L-shaped corner screens — two walls joined at 90° without gaps

Column wrap displays — four panels per tier on square architectural columns (360° seamless)

Cube / multi-face screens — six-sided immersive structures for events and installations

No adapters, no custom fabrication, no visible seam. Available in all three pixel pitch models.

Cabinet Sizes for Installation Planning

Size Use Case

500 × 500 × 50 mm Standard tiling — all configurations

500 × 1000 × 50 mm Large-format landscape — faster installation

500 × 250 × 50 mm Custom ratios · portrait · fine-fill
