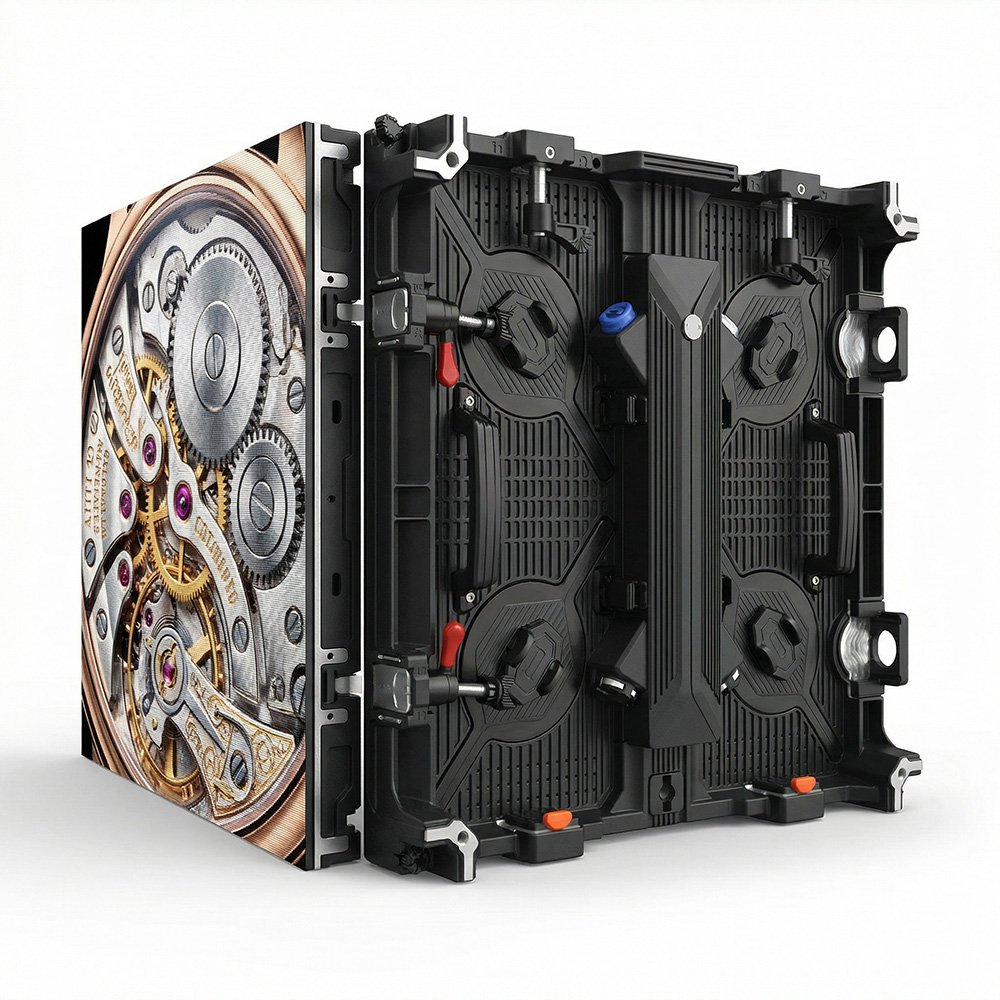

XRC COB rental LED display — 500×500mm cabinet, P1.9 & P2.6, 10,000:1 contrast, 7,680Hz refresh rate
7680Hz refresh rate
10000:1 high contrast ratio
IP54 waterproof COB protection
lightweight 7.5kg thin cabinet
fanless silent operation
front and rear maintenance
170° wide viewing angle
creative curved splicing
10,000:1 High Contrast
Deep black processing delivers a 10,000:1 contrast ratio with 1,200nit peak brightness and HDR support, keeping colors vivid and blacks deep under strong stage lighting.
7,680Hz Refresh Rate
Camera-safe at fast shutter speeds up to 1/4000s. Eliminates scan-line artifacts for broadcast, press photography, slow-motion capture, and virtual production.
IP54 COB Protection
Flip Chip COB modules are fully sealed with epoxy resin, providing anti-collision, anti-static, anti-oxidation, dust-proof and IP54 waterproof performance with a wipe-clean surface.
Lightweight 7.5kg Cabinet
Die-cast aluminum 500×500×70mm cabinet weighs only 7.5kg, allowing single-technician handling, faster rigging, and lower structural load for touring setups.
Fanless & Silent Operation
Efficient Flip Chip thermal design removes the need for fans, ensuring completely silent operation — ideal for conference rooms, studios, and any microphone-active environment.
Front & Rear Service
Modules and power supplies can be removed from both front and rear, so technicians can replace components quickly without disassembling the entire LED wall.
Creative Splicing Options
Supports flat, concave, convex, and 90-degree right-angle splicing using standard hardware, enabling curved stages, immersive booths, and corner installations from the same rental inventory.

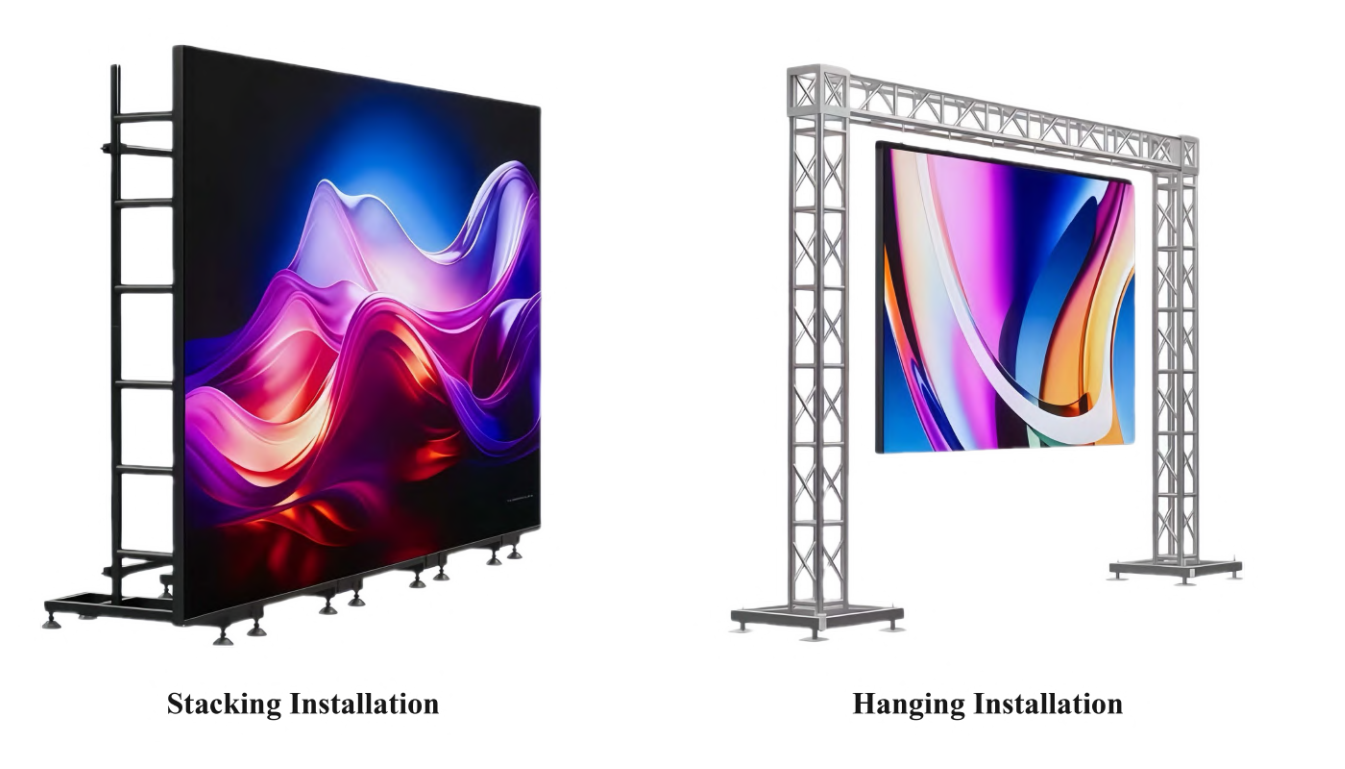

**Supported Installation Methods:**
- Hanging (rigging points on top rail)
- Stacking (ground-support stack with base plate)
- Wall-mount (fixed bracket, front-service access maintained)
- Curved configuration: concave / convex / right-angle splicing
**Installation Notes:**
- Single-technician panel handling: 7.5kg per cabinet
- Front and rear access for module and PSU replacement
- No custom frame required for standard curve configurations
- Compatible with standard 500×500mm rental truss and rigging hardware
- Recommended spare inventory: 5% of total panel count per deployment
| Parameter | XRC1.9 | XRC2.6 | XRCV1.9 (Virtual) | XRCV2.6 (Virtual) |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.95 | 2.6 | 0.97 | 1.3 |
| Pixel Density (pixels/m²) | 262,144 | 147,456 | 1,048,576 | 589,824 |
| LED Encapsulation | Flip Chip COB | Flip Chip COB | Flip Chip COB | Flip Chip COB |
| Module Size (W×H) | 250×250mm | 250×250mm | 250×250mm | 250×250mm |
| Module Resolution (W×H) | 128×128 dots | 96×96 dots | 256×256 dots | 192×192 dots |
| Panel Size (W×H×D) | 500×500×70mm | 500×500×70mm | 500×500×70mm | 500×500×70mm |
| Panel Resolution (W×H) | 256×256 dots | 192×192 dots | 512×512 dots | 384×384 dots |
| Scan Method | 1/16 | 1/16 | 1/16 | 1/16 |
| Panel Material | Die-cast Aluminum | |||
| Panel Weight | 7.5 kg | |||
| Input Voltage | AC 100–240V | |||
| Peak Brightness (cd/m²) | 1,200 | 1,200 | 1,200 | 1,200 |
| Brightness Adjustment | Programmable / Automatic / Manual | |||
| Contrast Ratio | 10,000:1 | |||
| Refresh Rate (Hz) | 7,680 | |||
| Gray Scale (bit) | 14 / 16 | |||
| Viewing Angle (H/V) | 170° / 170° | |||
| Color Temperature (K) | 3,200–9,300 (Adjustable) | |||
| Brightness Consistency | 98% | |||
| Chromaticity Consistency | 0.003 Cx, Cy | |||
| Single Pixel Calibration | Supported | |||
| Max / Avg Power (W/m²) | 600 / 200 | |||
| Serviceability | Front + Rear | |||
| IP Rating | IP54 (Front) / IP30 (Rear) | |||
| Operating Temperature | −40°C to +60°C | |||
| Operating Humidity (RH) | 10%–80% | |||
| Working Life (hours) | 100,000 |
