XIS Pro COB LED video wall features 170°H/170°V viewing angle, low blue light certification, IP60 fr
3840 / 7680Hz Refresh Rate
Low Blue Light Certified
600–1,000 nits Brightness
Fanless Silent Design
Front Service Only
4kg Lightweight Cabinet
170° Wide Viewing Angle
IP54 Waterproof & Dustproof
① 170°H / 170°V Wide Viewing Angle
XIS Pro uses flip chip COB encapsulation to deliver a 170° wide viewing angle both horizontally and vertically. Every seat in a conference room, lecture hall, or classroom receives the same brightness and color accuracy — eliminating the off-axis dead zones common with standard SMD displays.
② Low Blue Light Certified — Eye Protection for All-Day Use
XIS Pro has passed low blue light certification and uses a COB area-light source structure that distributes luminance evenly, effectively alleviating moire patterns. Combined with a surface temperature running 10–15°C lower than conventional LED displays, it is designed for 6–8 hour daily near-viewing in offices, classrooms, and medical environments.
③ Fanless Design — Zero Acoustic Noise
The flip chip COB structure dissipates heat without active cooling fans, producing zero noise during operation. This makes XIS Pro the right choice for boardrooms during presentations, classrooms during lessons, and any environment where background noise directly impacts function.

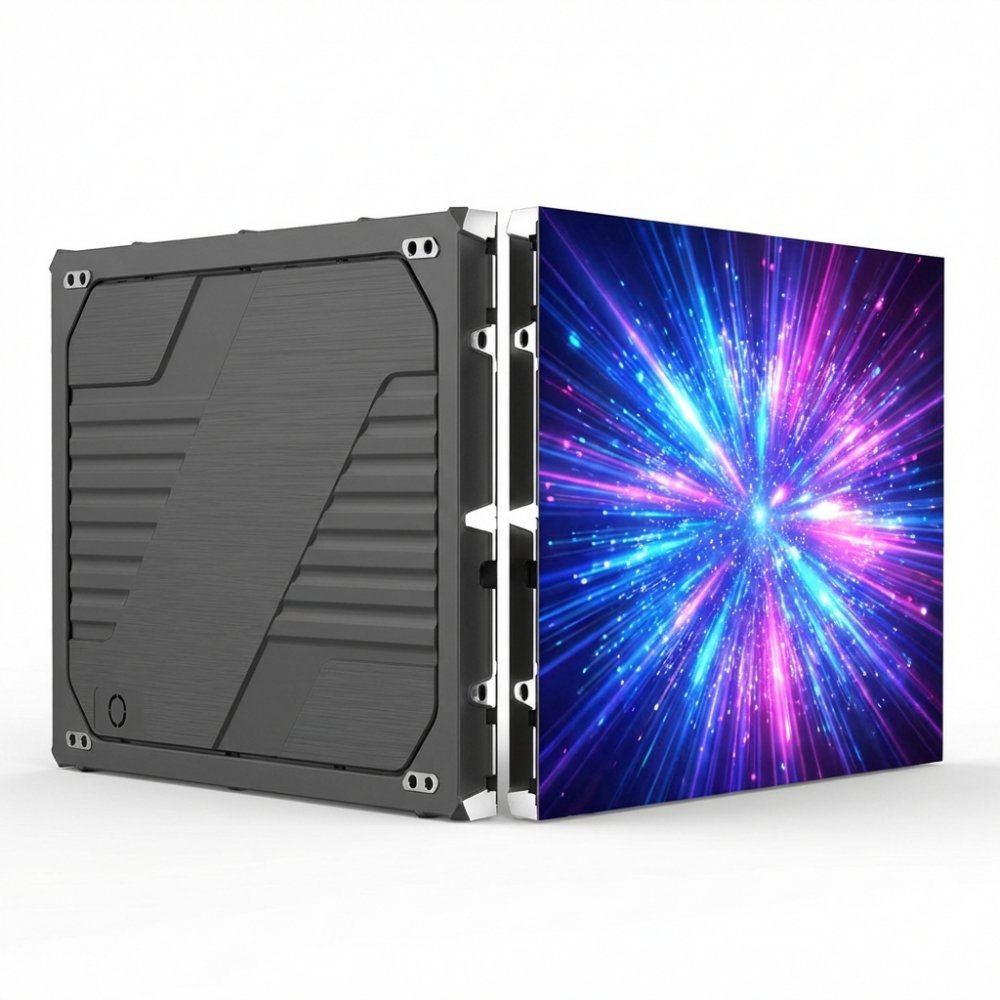

④ 39mm Ultra-Thin Cabinet — Only 4 kg Per Panel
The ultra-light die-casting aluminum cabinet is only 39mm deep and weighs 4 kg per unit. It installs flush against any wall surface, handles easily without specialist equipment, and places minimal structural load on mounting surfaces.
⑤ Full Front Service — Permanent Wall Installation
The 3-in-1 integrated system (power supply, control system, hub card) is pre-installed in each cabinet. All maintenance is accessed from the front (rated Front IP60) — no rear clearance is ever needed. The display can be permanently fixed against a wall and serviced in place.
⑥ 10,000:1 Contrast Ratio with HDR & 16-Bit Gray Scale
Deep black processing delivers a 10,000:1 contrast ratio. Combined with 16-bit gray scale, 1,000-nit peak brightness, and HDR support, XIS Pro renders fine gradations in data visualization, video content, and presentation graphics with exceptional accuracy.
⑦ High Reliability — IP54, Anti-Collision, Anti-Static
Flip chip COB encapsulation provides IP54 waterproof and dustproof protection, with anti-collision, anti-static, and anti-oxidation properties built into the panel surface. No exposed solder joints — significantly more durable than conventional SMD displays in daily operational environments.
⑧ 16:9 Native Cabinet Ratio — Direct LCD Replacement
Each cabinet is dimensioned in a native 16:9 ratio (600 × 337.5mm), matching HD, 4K, and 8K broadcast standards pixel-to-pixel without scaling or cropping. XIS Pro can directly replace an existing LCD video wall with seamless edges and full HDR content compatibility.
XIS Pro supports five installation configurations, all using the same fast interlock system:
① Wall-Mounting
Flush-mount directly against any wall surface. Cabinet depth of 39mm ensures minimal protrusion. No rear clearance required thanks to front-only service access.
② Hanging
Suspended ceiling or truss installation for environments where floor or wall mounting is not feasible — commonly used in lobbies, atriums, and retail spaces.
③ Stacking
Ground-stacked configuration for temporary or semi-permanent installations, exhibitions, and event venues.
④ LED Poster Configuration
Single-column portrait-format display using a small number of cabinets — suitable for signage, reception areas, and wayfinding displays.
⑤ All-in-One LED Display
Integrated display unit combining the LED panel with built-in processing — reduces external hardware requirements for smaller, standalone installations.
Installation note: The 3-in-1 integrated system (power supply, control system, hub card) is pre-installed in each cabinet. No separate hardware rack is required for standard configurations. Voltage input: 100–240V AC.
XIS Pro Series — Full Specification Table
| Specification | XISP0.6 | XISP0.7 | XISP0.9 | XISP1.2 | XISP1.5 | XISP1.8 |
|----------------------------|-------------|-------------|-------------|--------------|--------------|--------------|
| Pixel Pitch (mm) | 0.62 | 0.78 | 0.93 | 1.25 | 1.56 | 1.875 |
| Physical Density (dot/㎡) | 2,560,000 | 1,638,400 | 1,137,778 | 640,000 | 409,600 | 284,444 |
| LED Type | Flip chip COB | ← same | ← same | ← same | ← same | ← same |
| Panel Size W×H×D (mm) | 600×337.5×39 | ← same | ← same | ← same | ← same | ← same |
| Panel Resolution W×H (px) | 960×540 | 384×216 | — | 768×432 | 640×360 | 480×270 |
| Module Resolution W×H (px) | 240×270 | 96×108 | — | 192×216 | 160×180 | 120×135 |
| Module Size (mm) | 150×168.75 | 80×90 | — | 150×168.75 | 150×168.75 | 150×168.75 |
| Weight (kg/pc) | 4 | ← same | ← same | ← same | ← same | ← same |
| Voltage (V) | 100–240 | ← same | ← same | ← same | ← same | ← same |
| Brightness (nits) | 600–1,000 | ← same | ← same | ← same | ← same | ← same |
| Brightness Adjustment | Programmable / Auto / Manual | ← same | ← same | ← same | ← same | ← same |
| Viewing Angle H/V | 170°/170° | ← same | ← same | ← same | ← same | ← same |
| Gray Scale (bit) | 14–16 | ← same | ← same | ← same | ← same | ← same |
| Refresh Rate (Hz) | 3,840/7,680 | ← same | ← same | ← same | ← same | ← same |
| Frame Rate (Hz) | 50/60 | ← same | ← same | ← same | ← same | ← same |
| Contrast Ratio | 10,000:1 | ← same | ← same | ← same | ← same | ← same |
| Color Temperature (K) | 2,000–10,000 (adj.) | ← same | ← same | ← same | ← same | ← same |
| Avg. Power (W/㎡) | 80–150 | ← same | ← same | ← same | ← same | ← same |
| Max. Power (W/㎡) | 420 | ← same | ← same | ← same | ← same | ← same |
| Serviceability | Front | ← same | ← same | ← same | ← same | ← same |
| IP Rating | Front IP60 / Rear IP30 | ← same | ← same | ← same | ← same | ← same |
| LED Lifetime (hrs) | 100,000 | ← same | ← same | ← same | ← same | ← same |
* XISP0.9 module resolution and module size not available in current specification sheet.
