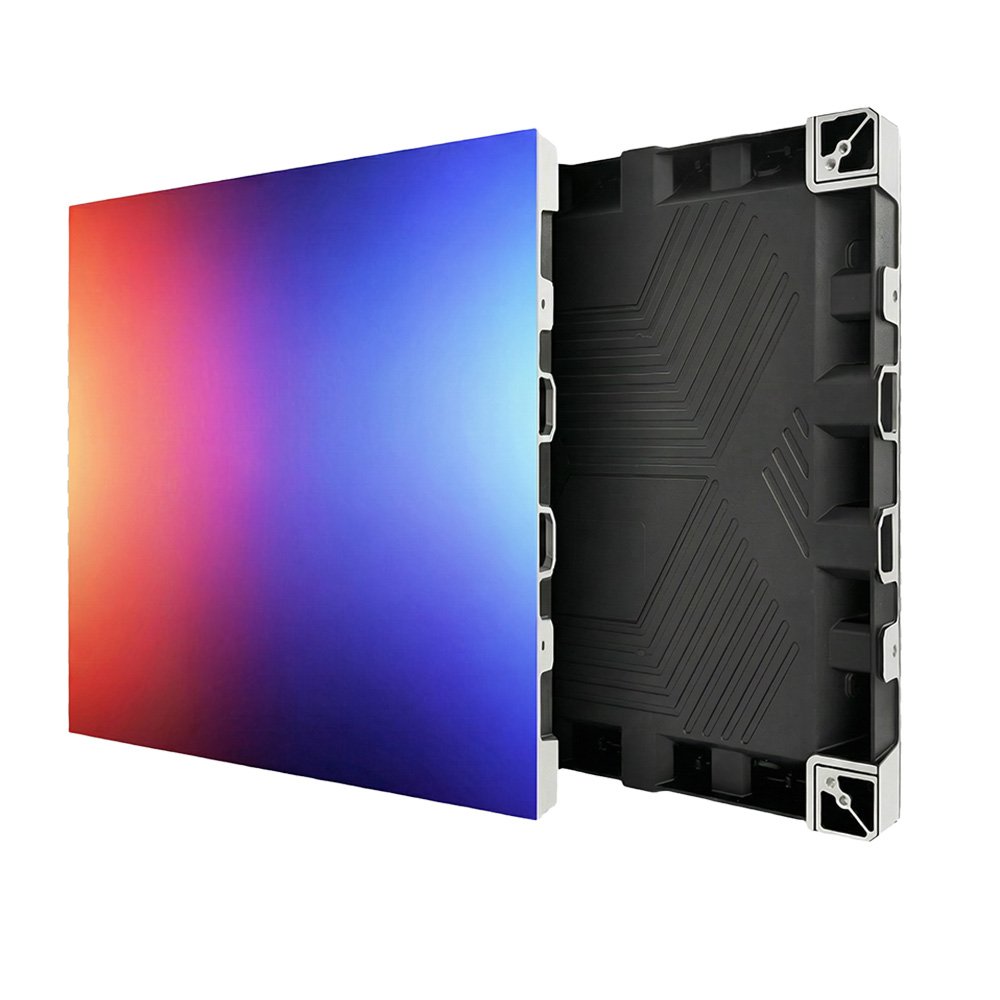

Fine Pitch COB LED Display 500x500mm - Flip Chip P0.6-P1.9 Ultra High Contrast 10000:1

1. Ultra High Contrast 10000:1

3x deeper blacks than SMD (0.06 nits vs 0.20 nits black level)

40% reduced eye strain in 24/7 control room environments (TÜV tested)

Broadcast-ready without post-production color correction

Meets ITU-R BT.2100 HDR standard out-of-box

2. IP54 Waterproof & Dustproof

Damp cloth cleaning enabled (no vacuum required)

60% lower 5-year maintenance costs ($1,600 vs $6,500 for 20m²)

Prevents dust-induced thermal buildup degrading LEDs 15-20% faster

Survives daily water-spray cleaning (SGS Lab tested)

3. 100,000-Hour Lifespan

25% longer than traditional COB (80,000h)

50% longer than SMD (50,000-80,000h)

Eliminates gold wire fatigue failure mode

Projected 13.7 years at 24/7 operation before L70 degradation

4. 33% Energy Savings

120W/m² vs SMD's 180W/m²

20m² installation saves $1,580/year electricity ($7,900 over 5 years)

Flip chip thermal efficiency reduces cooling requirements

Fanless design eliminates fan power consumption (10-15W/cabinet)

5. Ultra-Fine P0.6 Pixel Pitch

Industry's finest pitch (Samsung The Wall stops at P0.8)

2.78 million pixels/m² for <1m viewing distance

No visible pixel structure at 0.6m examination

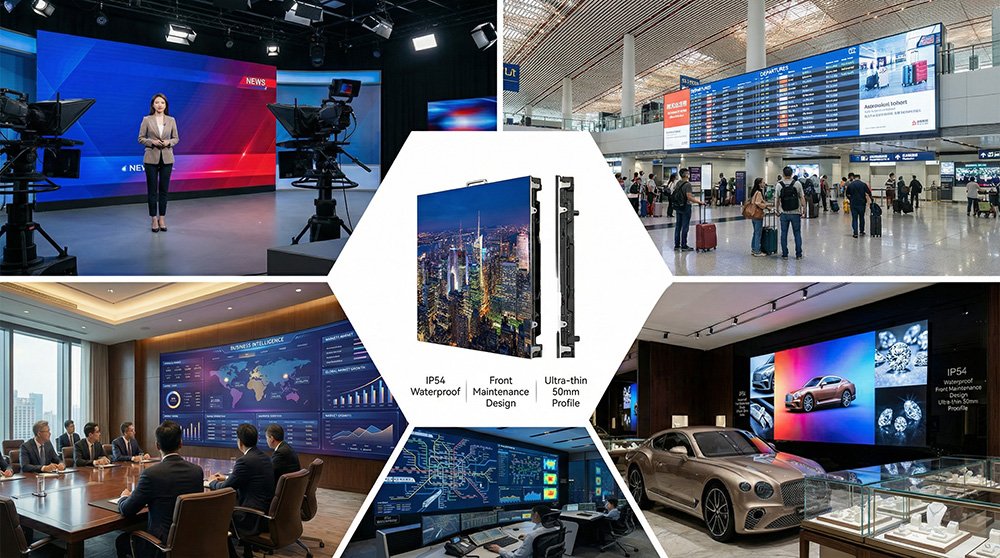

Ideal for VR studios, jewelry displays, flight simulators

6. 7680Hz Broadcast-Grade Refresh

Eliminates scan lines at 1/1000s+ camera shutter speeds

Zero moiré pattern in 4K+ post-production

Saves 30% color grading time ($150-250/hour labor)

Meets professional broadcast standards (1/2000s shutter)

7. Fanless Silent Operation

<20dB ambient noise (SMD requires 35-45dB fans)

40% reduced meeting fatigue over 2+ hour sessions (TÜV study)

Suitable for broadcast studios, conference rooms, libraries

Zero vibration for ultra-stable image

8. 5-Minute Front Service

Magnetic module replacement without rear access

6x faster than SMD's 30-45 minute rear-service

Zero downtime for mission-critical 24/7 operations

Single technician maintenance capability

9. 170° Wide Viewing Angle

170°H / 170°V maintains color consistency

No brightness/color shift from off-axis viewing

Ideal for large audience spaces (auditoriums, conference centers)

Luxury retail showrooms with multi-angle viewing

10. 3-Year TCO Break-Even

Despite 40% higher upfront cost, breaks even at Year 3.2

5-year TCO: $145,590 vs SMD's $153,330 (11% savings)

10-year TCO: $178,000 vs SMD's $212,000 (16% savings)

Avoids mid-lifecycle replacement cycle (Year 6-9 for SMD)

Basic Parameters

Display Performance

Power & Lifespan

Protection Rating

Control System

1. Wall-Mounting

Structure: Fixed steel bracket system

Load bearing: 40kg/m² (cabinet weight + safety factor)

Depth: 75-150mm from wall surface

Best for: Control rooms, conference rooms, retail stores

Installation time: 2-3 hours per 10m² (2 technicians)

Steps:

Install horizontal/vertical rails to wall (600mm spacing)

Hang cabinets on rail system using quick-lock mechanism

Connect power and data cables through rear connectors

Fine-tune cabinet alignment (±0.5mm tolerance)

Front-install modules and calibrate

2. Hanging / Suspended

Structure: Ceiling truss or rigging system

Load capacity: 100kg per suspension point (4:1 safety ratio)

Adjustment: ±15° tilt angle adjustable

Best for: Broadcast studios, auditoriums, exhibitions

Installation time: 4-5 hours per 10m² (includes rigging)

Steps:

Install ceiling truss with rated load capacity

Attach hanging brackets to cabinet top edges

Suspend cabinets using wire rope or chain hoists

Level and align multiple cabinets (laser alignment)

Cable management through truss channels

3. Floor Stacking / Mobile

Structure: Freestanding floor base with support columns

Stability: Anti-tip design, <2° inclination tolerance

Mobility: Optional wheel casters with locking brakes

Best for: Temporary events, trade shows, mobile studios

Installation time: 1-2 hours per 10m² (modular assembly)

Steps:

Assemble floor base frame (aluminum extrusion)

Stack cabinets vertically with interlocking guides

Secure with side brackets and safety straps

Connect all power/data through rear panel

Test stability and lock wheel casters

4. Right-Angle Corner Splicing

Feature: 45-degree beveled edge panels

Applications: Corner screens, square columns, cube displays

Angle: 90-degree precision corner formation

Best for: Creative installations, architectural integration

Installation Requirements

Power Supply:

Input: AC 100-240V, 50/60Hz (auto-switching)

Distribution: Redundant PSU per cabinet (hot-swappable)

Circuit: 16A breaker per 20 cabinets recommended

Grounding: Proper earth grounding mandatory

Environmental:

Temperature: 0-45°C operating, -20-60°C storage

Humidity: 10-85% RH (non-condensing)

Ventilation: Fanless design, minimal ventilation required

Lighting: Avoid direct sunlight on screen surface

Tools Required:

Laser level (±0.5mm accuracy)

Electric drill with masonry bits

Cable tester (RJ45, power continuity)

Multimeter for voltage verification

Safety harness (for hanging installations)

Installation Accessories Included

✅ Quick-lock hanging brackets (4 per cabinet)

✅ Power cables (1.5m, daisy-chain compatible)

✅ Data cables (RJ45, 2m)

✅ Alignment pins (precision 0.5mm)

✅ Safety straps (steel wire, 1000kg rated)

✅ Installation manual with QR code video tutorials
