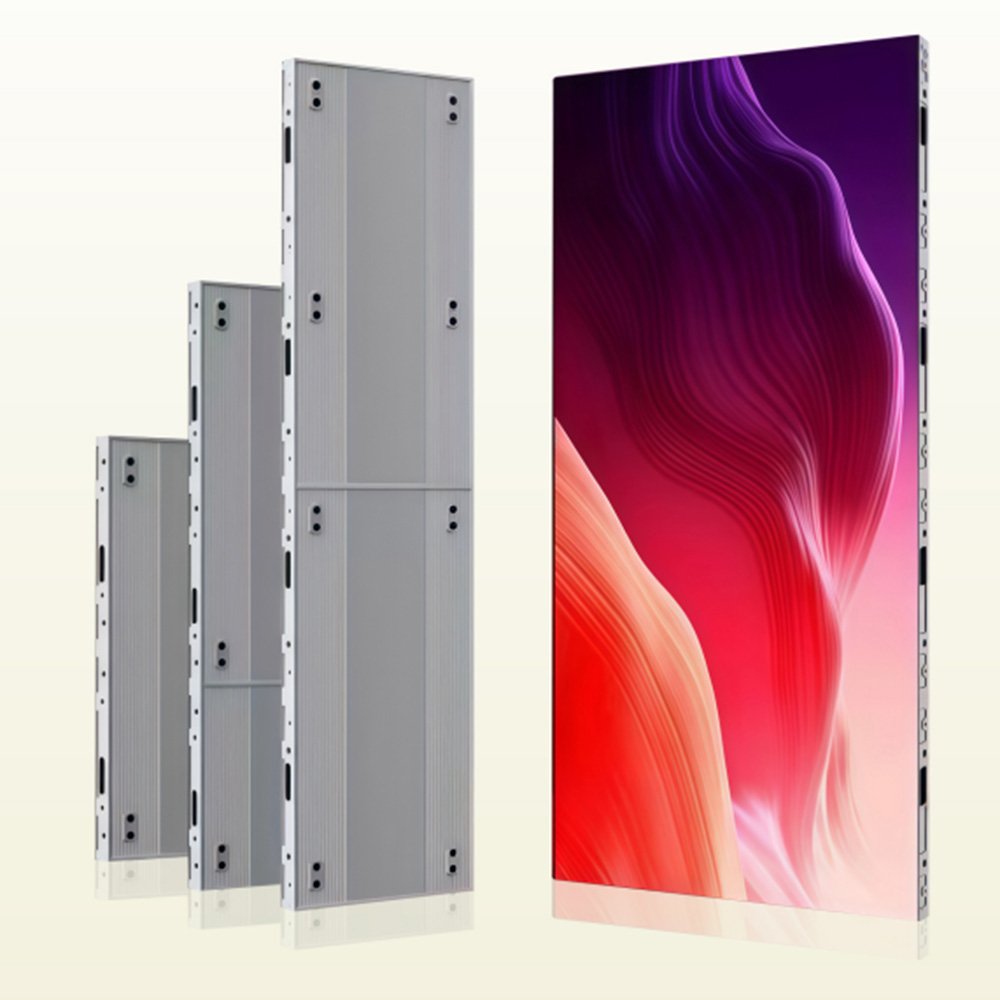

Ultra HD LED Video Wall 500x1000mm - 4K/8K Indoor Display P0.9-P2.5 High Resolution

1. Non-Standard 500x1000mm Cabinet Format

Reduces seam lines by 33% compared to 640x480mm standard formats. Six available sizes (500×250mm to 1000×500mm) enable creative configurations: L-shaped corners, stepped displays, and ultra-wide 21:9 formats impossible with single-dimension systems.

​

2. 32mm Ultra-Thin Depth

50% thinner than standard 65mm cabinets. Reduces wall load to 16kg/m² (8kg cabinet), eliminating $800-$1,200 reinforcement costs. Saves $9,100 in 5-year TCO per 10m² installation through reduced shipping, installation labor, and maintenance access costs.

​

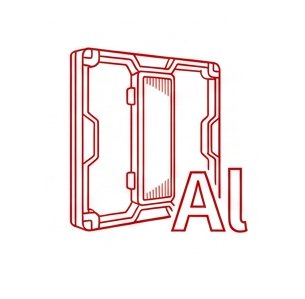

3. Front-Service Magnetic Modules

Vacuum-tool detachable modules reduce service time to 5-8 minutes per component. No rear wall access required, enabling flush installation. Traditional systems require 30-45 minutes with adjacent cabinet dismantling.

​

4. Multiple Cabinet Sizes

Six size options (500×250/750×250/1000×250/500×500/750×500/1000×500mm) versus single-size competitors. Enables exact fit to non-standard wall dimensions without cutting or custom fabrication.

​

5. Dual Refresh Rate (3840/7680Hz)

3840Hz for human viewing (control rooms, corporate). 7680Hz for camera capture (broadcast, XR studios)—prevents scan lines at any shutter speed including 1/1000s high-speed.

​6. Native 4K/8K Resolution

P1.25 achieves native 4K with 30 cabinets (5m×3m wall), 8K with 120 cabinets (10m×6m). Precise modular format minimizes pixel waste versus approximated resolutions.

7. Energy Efficient

120W/m² average power consumption for P1.25-P2.5 models versus 180-250W/m² industry standard. Saves $1,500-$2,500 annually for 20m² installations operating 24/7.

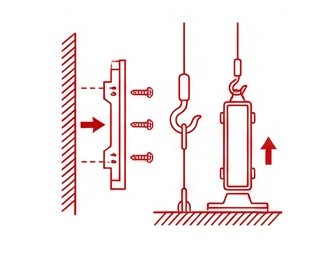

​8. Three Installation Methods

Wall-mounted, hanging, and stacking without cabinet modifications. Rigging-ready with four points per cabinet (5:1 safety factor). Ground-supported stacking enables tool-free portable setups.

​9. GOB Protection Available

Optional Glue-On-Board encapsulation enhances waterproof, dustproof, and impact resistance for LED surfaces—extending lifespan in demanding environments

Wall-Mounted Installation

​

Load requirement: 16kg/m² (fits standard commercial walls)

Mounting method: Direct bracket attachment with integrated cable management

Alignment tolerance: ±2mm tool-free adjustment

Installation time: 2-3 days for 15m² wall (3-person crew)

Front clearance: 800mm for maintenance access

Ideal for: Control rooms, corporate lobbies, conference facilities (permanent)

Hanging Installation

​

Rigging points: Four per cabinet on top edge

Load rating: 40kg working load per point (5:1 safety factor)

Hardware: Certified rigging hardware required (not included)

Weight advantage: 8kg cabinets = 43% easier overhead handling

Setup: Quick-release safety cables for rapid deployment

Ideal for: Broadcast studios, theaters, rental staging (suspended)

Stacking Installation

​

Support: Ground-supported frames with gravity-lock interlocking

Maximum height: 4m (8 cabinets vertically)

Stabilizer: Base feet included for free-standing arrays

Tools required: None (tool-free assembly)

Setup time: 30 minutes per 2m² section (2-person team)

Transport: Cases available for 4-cabinet modules

Ideal for: Trade shows, retail pop-ups, temporary command centers

Creative Configurations

​

Flat Splicing: Standard rectangular arrays

Right-Angle Splicing: 90° corner displays with seamless image wrap

Curved Splicing: Concave/convex arcs (3m+ radius)

LED Poster: Vertical columns (1×6 or 1×8 cabinets)

All-in-One Display: Integrated media player housing

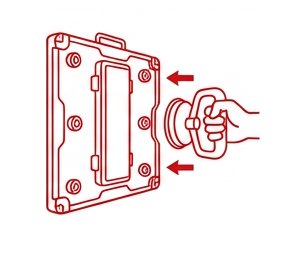

Front-Service Process

Position vacuum suction tool on module surface (30 sec)

Pull module forward—magnetic attachment releases (2 min)

Disconnect power connector (automatic during removal)

Connect replacement module with reverse procedure (2 min)

Test operation and release vacuum (1 min)

Total service time: 5-8 minutes per module
