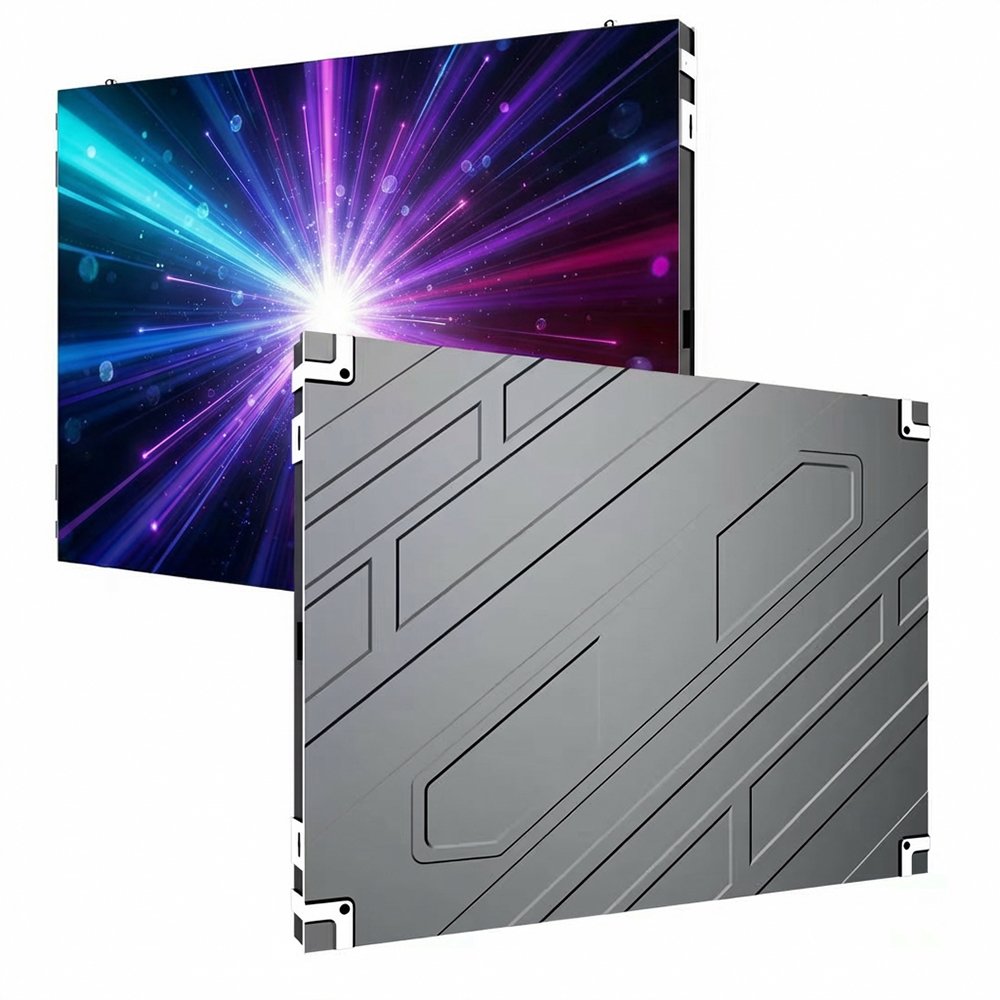

XIF Series 640x480mm indoor LED video wall with P1.25-P2.5 pixel pitch. Lightweight 7kg cabinets, ma
3840Hz
Seamless Splicing
7kg Lightweight Cabinet
Multiple Installation Options
320x160mm Standard Module
Magnetic Front-Service
600-800 Nits Brightness
Good Heat Dissipation
1. Magnetic Front-Service Maintenance
Vacuum-tool detachable modules reduce service time to 5-8 minutes per component. No rear wall access required, enabling installation in space-constrained locations.
2. Lightweight Die-Cast Aluminum
7kg cabinet weight simplifies handling and reduces structural load to 23kg/m². Two-person teams install without heavy lifting equipment.
3. Seamless Precision Splicing
±0.1mm cabinet tolerance ensures invisible seams at viewing distances. Supports flat, right-angle, and curved configurations for creative installations.
4. Energy Efficiency
P2.5 model consumes only 200W/m², reducing operational costs by 67% compared to P1.25 (600W/m²) for budget-conscious applications.
5. Broadcast-Grade Performance
3840Hz refresh rate eliminates flicker and scan lines for camera applications. 140° viewing angle maintains color accuracy off-axis.
6. Flexible Installation Methods
Wall-mounted, hanging, and stacking options adapt to diverse environments without custom fabrication. LED Poster and All-in-One formats available.
7. Industry-Standard Modules
320x160mm module size ensures replacement availability from multiple suppliers. Optional GOB protection for enhanced durability.
| Parameter | XIF1.25 | XIF1.538 | XIF1.86 | XIF2.0 | XIF2.5 |
|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2.0mm | 2.5mm |
| Pixel Density | 640,000/m² | 418,889/m² | 286,667/m² | 250,000/m² | 160,000/m² |
| Cabinet Resolution | 512x384 | 416x312 | 344x258 | 320x240 | 256x192 |
| Cabinet Size (W×H×D) | 640×480×65mm | 640×480×65mm | 640×480×65mm | 640×480×65mm | 640×480×65mm |
| Cabinet Weight | 7kg | 7kg | 7kg | 7kg | 7kg |
| Brightness | 600-800 nits | 600-800 nits | 600-800 nits | 600-800 nits | 600-800 nits |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max Power Consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 200W/m² |
| LED Lifespan | 100,000h | 100,000h | 100,000h | 100,000h | 100,000h |
Mounting Methods
Wall-Mounted Installation
Direct bracket attachment to structural walls
Minimum wall load rating: 25kg/m²
Front clearance required: 800mm for maintenance access
Installation time: 2-3 days for 15m² wall (3-person team)
Hanging Installation
Rigging points on cabinet top edge
Suitable for rental/staging and suspended configurations
Requires certified rigging hardware and structural survey
Quick-release design for temporary setups
Stacking Installation
Ground-supported frames with cabinet interlocking
No wall attachment required
Portable configuration for events and exhibitions
Stabilizer feet included for free-standing arrays
Configuration Options
Flat Splicing: Standard rectangular arrays
Right-Angle Splicing: 90° corner displays
Curved Splicing: Concave/convex arc shapes (3m+ radius)
LED Poster: Vertical 1x6 or 1x8 columns
All-in-One Display: Integrated media player housing
Front-Service Maintenance Process
Position vacuum suction tool on module surface
Activate vacuum and gently pull module forward
Disconnect module power connector (magnetic detachment)
Install replacement module with reverse procedure
Total service time: 5-8 minutes per module
| Specs\Applications | Indoor 500×500mm | Outdoor 500×500mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.56 | 1.95 | 2.6 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 | 3.91 |
| Lamp Types | SMD1212 / SMD1515 / SMD2121 | SMD1415 / SMD1921 | ||||||||
| Cabinet Size (mm) | 500×500 | |||||||||
| Cabinet Weight (kg) | 8 | 8.8 | ||||||||
| Brightness (cd/m²) | 1000-1200 | 4500-6000 | ||||||||
| Refresh Rate | ≥7680Hz | |||||||||
| Operating Temperature | -20℃ ~ +45℃ | |||||||||
| Lifespan (Hrs) | ≥50,000 | |||||||||
