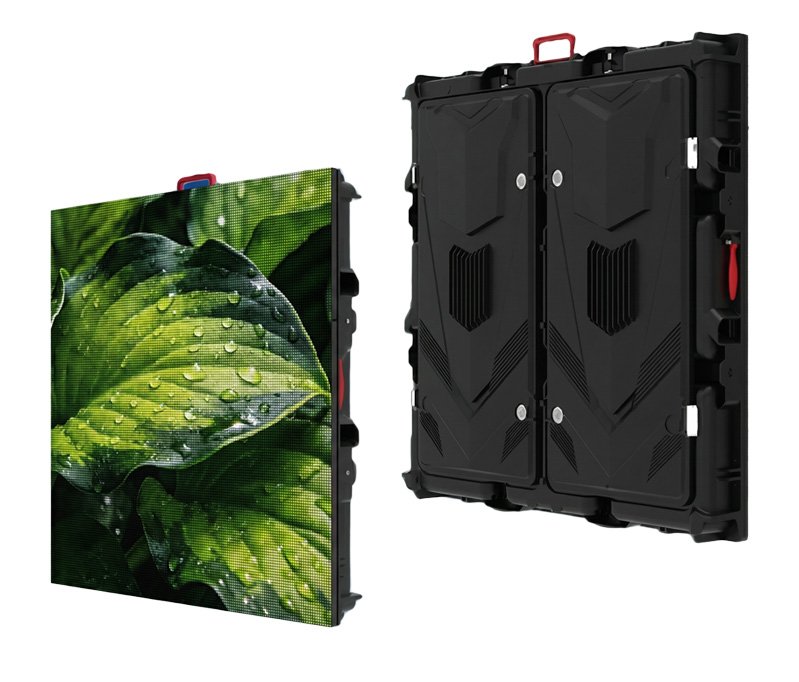

DOOH Outdoor LED Display P4-P10 - Energy Saving Advertising Billboard IP65-XFO

1. Flexible Custom Sizing

Supports 13 module array configurations (2×3 to 6×4) enabling custom panel dimensions without material waste. Solves non-standard installation challenges where fixed-size cabinets force excess purchases or leave gaps. No additional lead time for standard array combinations; custom shapes add 5-8% cost.

2. Patented Sawtooth Mask Technology

Black crystal color sawtooth-patterned mask diffuses sunlight reflection, delivering 5000:1 contrast ratio versus 3000:1 industry standard. Glass fiber reinforcement reduces temperature-induced warping by 40%. Significant advantage for south-facing or west-facing installations under direct sunlight.

3. High Brightness Range with Adjustability

5000-10000 nits programmable brightness handles extreme outdoor lighting conditions. Automatic brightness adjustment (8000 nits daytime, 3000 nits nighttime) reduces average power consumption by 30% below maximum 850W/㎡ specification.

4. Creative Display Configurations

90° seamless splicing enables L-shaped, cylindrical, concave, and convex installations. Ideal for building corners, column wraps, and naked-eye 3D applications. Dual-plane visibility captures multi-directional foot traffic in high-value urban locations.

5. Dual-Layer IP65 Protection

Cabinet-level full sealing plus module-level waterproof gaskets provide redundant moisture defense. Withstands direct rain exposure, 95%+ humidity, coastal salt air, and high-pressure cleaning up to 10 meters distance.

6. Lightweight Construction

≤37 kg/㎡ weight specification is 18% lighter than 45 kg/㎡ industry average, simplifying structural requirements and reducing installation costs.

7. Uniform Specifications Across Models

All XFO models (P4-P10) share identical 850W/㎡ power consumption and ≤37kg/㎡ weight. Eliminates power infrastructure changes and structural recalculations when adjusting pixel pitch specifications.

1. Flexible Custom Sizing

Supports 13 module array configurations (2×3 to 6×4) enabling custom panel dimensions without material waste. Solves non-standard installation challenges where fixed-size cabinets force excess purchases or leave gaps. No additional lead time for standard array combinations; custom shapes add 5-8% cost.

2. Patented Sawtooth Mask Technology

Black crystal color sawtooth-patterned mask diffuses sunlight reflection, delivering 5000:1 contrast ratio versus 3000:1 industry standard. Glass fiber reinforcement reduces temperature-induced warping by 40%. Significant advantage for south-facing or west-facing installations under direct sunlight.

3. High Brightness Range with Adjustability

5000-10000 nits programmable brightness handles extreme outdoor lighting conditions. Automatic brightness adjustment (8000 nits daytime, 3000 nits nighttime) reduces average power consumption by 30% below maximum 850W/㎡ specification.

4. Creative Display Configurations

90° seamless splicing enables L-shaped, cylindrical, concave, and convex installations. Ideal for building corners, column wraps, and naked-eye 3D applications. Dual-plane visibility captures multi-directional foot traffic in high-value urban locations.

5. Dual-Layer IP65 Protection

Cabinet-level full sealing plus module-level waterproof gaskets provide redundant moisture defense. Withstands direct rain exposure, 95%+ humidity, coastal salt air, and high-pressure cleaning up to 10 meters distance.

6. Lightweight Construction

≤37 kg/㎡ weight specification is 18% lighter than 45 kg/㎡ industry average, simplifying structural requirements and reducing installation costs.

7. Uniform Specifications Across Models

All XFO models (P4-P10) share identical 850W/㎡ power consumption and ≤37kg/㎡ weight. Eliminates power infrastructure changes and structural recalculations when adjusting pixel pitch specifications.

Model: XFO Series (XFO2.5, XFO3, XFO4, XFO5, XFO6, XFO8, XFO10)

DISPLAY TECHNOLOGY

LED Type: SMD

Pixel Pitch: 2.5mm / 3mm / 4mm / 5mm / 6mm / 8mm / 10mm

Pixel Density: 160,000 / 110,601 / 62,500 / 40,000 / 22,477 / 15,625 / 10,000 pixels/㎡

Panel Size: 960×960×153mm (standard), 1024×1024×153mm (XFO8)

Panel Material: Iron cabinet

OPTICAL PERFORMANCE

Brightness: 5000-10000 nits (programmable/automatic/manual adjustment)

Viewing Angle: Horizontal 160° / Vertical 120°

Contrast Ratio: 5000:1

Color Temperature: 2000-10000K (adjustable)

Gray Scale: 14-bit / 16-bit

Refresh Rate: ≥3840Hz

ELECTRICAL SPECIFICATIONS

Voltage: AC 100-240V (compatible with global standards)

Power Consumption: 850W/㎡ (maximum)

Average Power: Varies by brightness setting and content

ENVIRONMENTAL PROTECTION

IP Rating: IP65 (front and rear)

Operating Temperature: -20°C to +50°C (verify specific model datasheet)

Storage Temperature: -40°C to +60°C

Humidity Tolerance: 10-95% RH (non-condensing)

PHYSICAL SPECIFICATIONS

Weight: ≤37 kg/㎡

Cabinet Depth: 153mm

Maintenance: Front-access or rear-access (specify at order)

RELIABILITY

LED Lifetime: 100,000 hours (rated)

MTBF: 5000+ hours

Cooling: Built-in fans + shell-mounted power supply

CONTROL SYSTEM

Control: Standard receiving card (specify brand at order)

Input Signal: HDMI, DVI, SDI (verify configuration)

Processing: Video processor compatible

CERTIFICATIONS

Safety: CE, UL (verify regional requirements)

EMC: FCC, RoHS compliant
