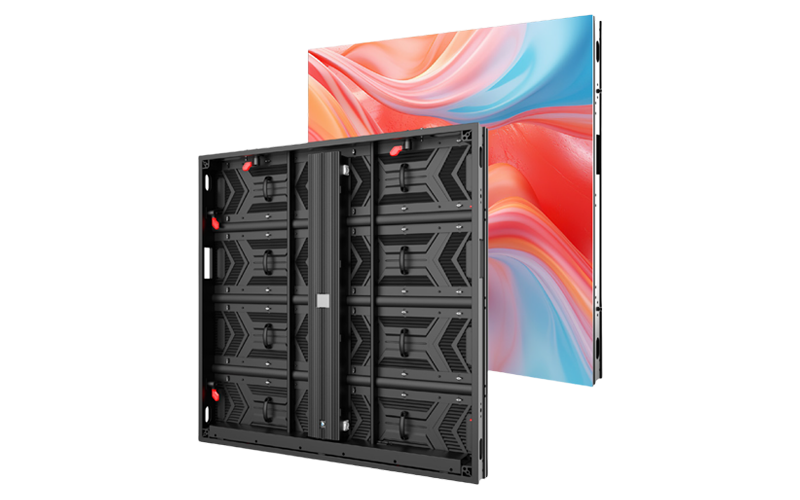

Custom outdoor LED video wall 1000x960mm modular design. IP65 waterproof, 4500-10000 nits brightness
3840HzHz
Foldable Design
≥800cd/m²
Easy to move
Smart Cloud Management
Front Maintenance
Die Cast Aluminum
60kg
Ultra-Lightweight Construction
27kg cabinet weight—35% lighter than traditional outdoor cabinets. Reduces building load requirements, transportation costs, and installation labor.
Energy Efficiency Leader
Common Cathode Technology cuts power consumption by 30%. Average power: 200W/㎡ vs. 425W/㎡ for traditional panels. ROI improvement through reduced electricity bills.
Dual Maintenance Access
Front and rear serviceability enables quick module replacement without removing entire cabinets. Pins connection design allows tool-free module insertion/removal.
Superior Weather Resistance
IP65 protection against water and dust. Operates in extreme temperatures (-40°C to +60°C). Aluminum construction resists corrosion and provides excellent heat dissipation.
Fast Installation System
Stainless steel fast-lock mechanism securely connects cabinets in seconds. Non-enclosed frame design enables seamless splicing without visible gaps.
Flexible Configuration
Arc corner cabinets support curved installations. Right-angle connections create L-shaped or wraparound displays. Multiple mounting options adapt to any architectural scenario.
Broadcast-Quality Visuals
3840-7680Hz refresh rate eliminates flicker on cameras. 5000:1 contrast ratio delivers deep blacks and vibrant colors. Adjustable brightness (2000-10000K color temperature) matches ambient lighting.
Long Service Life
100,000-hour rated lifespan (11+ years of 24/7 operation). Fanless cooling reduces mechanical failure points. High-precision aluminum cabinet maintains flatness over time.
| Parameter | XOF-M2.9 | XOF-M3.9 | XOF-M4.8 | XOF-M6.2 | XOF-M7.8 | XOF-M10.4 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm | 7.8mm | 10.42mm |
| Pixel Density | 112,896/㎡ | 65,536/㎡ | 43,264/㎡ | 25,600/㎡ | 16,384/㎡ | 9,216/㎡ |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Resolution | 168×64 | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 |
| Cabinet Resolution | 336×336 | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 |
| Brightness | 4500-8000 nits | 4500-8000 nits | 6000-10000 nits | 6000-10000 nits | 6000-10000 nits | 6000-10000 nits |

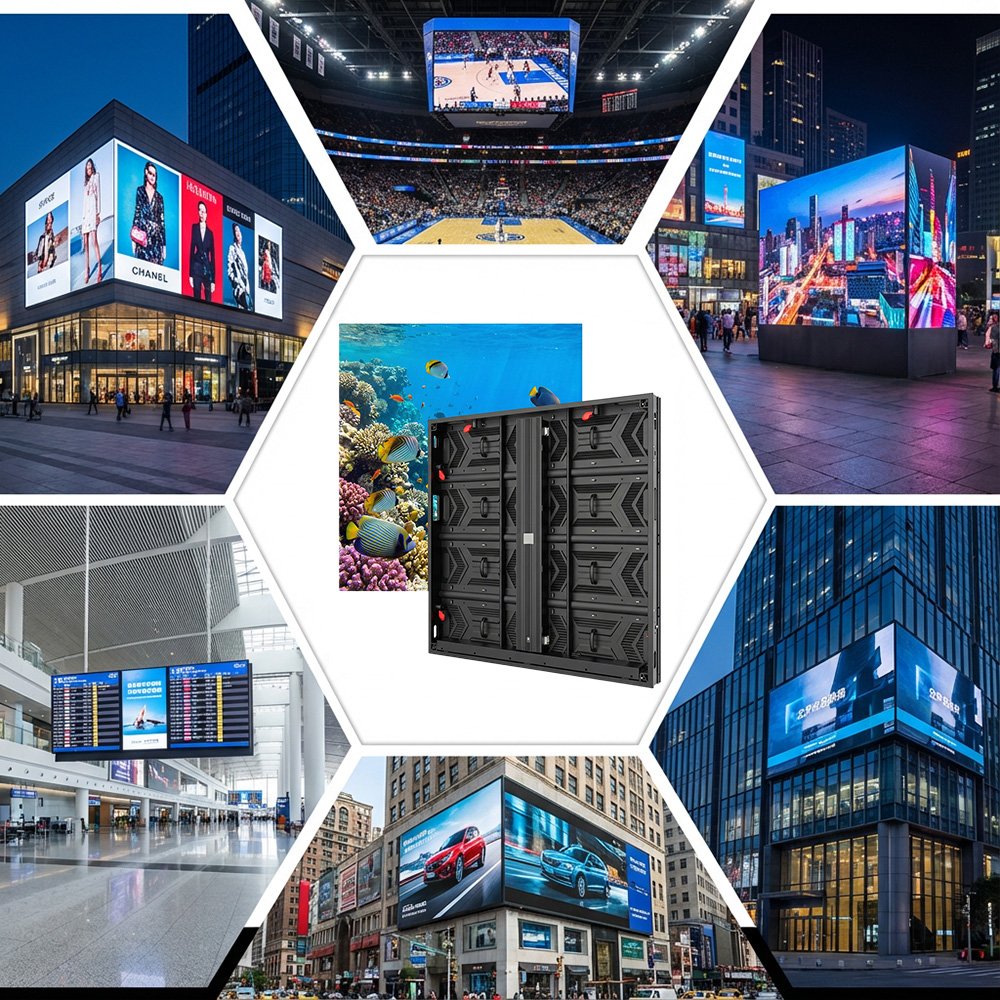

Wall-Mounted Installation
Direct attachment to building facades using fast-lock connectors. Lightweight design eliminates need for heavy steel reinforcement structures.
Hanging Installation
Suspended from ceiling or overhead structures. Ideal for canopy displays at gas stations, drive-throughs, and covered walkways.
Floor-Standing Installation
Freestanding support frames for temporary events or mobile advertising trucks. Quick assembly/disassembly for rental applications.
Installation Features
Fast-lock mechanism: Cabinets connect in seconds without tools
Seamless splicing: Non-enclosed frame creates invisible cabinet borders
Modular expansion: Add cabinets horizontally or vertically as needed
Cable management: Internal routing keeps connections protected and organized
Product Specifications
| Parameter | Specification |
|---|---|
| Module Dimensions | 500mm × 250mm × 19mm (W×H×D) |
| Cabinet Dimensions | 1000mm × 1000mm × 83mm (W×H×D) |
| Cabinet Weight | 27kg (35% lighter than standard) |
| Material | Die-cast aluminum module + aluminum cabinet frame |
| Protection Grade | IP65 (front) |
| Maintenance Access | Front and rear dual service |
Optical Performance
| Parameter | Specification |
|---|---|
| Brightness | 4500-10000 cd/㎡ (model dependent) |
| Brightness Adjustment | Programmable / Automatic / Manual |
| Viewing Angle | 140° horizontal / 140° vertical |
| Contrast Ratio | 5000:1 |
| Color Temperature | 2000-10000K (adjustable) |
| Gray Scale | 13-14 bit |
Electrical & Performance
| Parameter | Specification |
|---|---|
| Refresh Rate | 3840Hz / 7680Hz |
| Input Voltage | AC 100-240V |
| Power Consumption (Max) | 650W/㎡ |
| Power Consumption (Avg) | 200W/㎡ (Common Cathode) |
| Energy Savings | 30% vs traditional LED panels |
| Cooling System | Fanless passive cooling |
Environmental
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 10%-90% RH (non-condensing) |
| Storage Temperature | -40°C to +70°C |
| Rated Lifespan | 100,000 hours |
