XOF-Pro Standard Outdoor LED Display for commercial DOOH. HD small pixel pitch (P1.56-P3.91), IP66 w
3840HzHz
Foldable Design
≥800cd/m²
Easy to move
Smart Cloud Management
Front Maintenance
Die Cast Aluminum
60kg
HD Small Pixel Pitch
P1.56-P3.91 for close-range outdoor viewing
Delivers crisp images at 2-4m distances
Ideal for pedestrian zones and retail
40% Energy Savings
Common Cathode technology
Average 186W/㎡ vs. traditional 310W/㎡
Lower operating costs for 24/7 DOOH
Ultra-Lightweight Design
16kg cabinet (45% lighter than competitors)
Wall-mounted without steel structure
Reduces installation labor by 50%
IP66 Full Protection
Complete dust and water resistance
Suitable for all outdoor weather conditions
Coastal/industrial environment certified

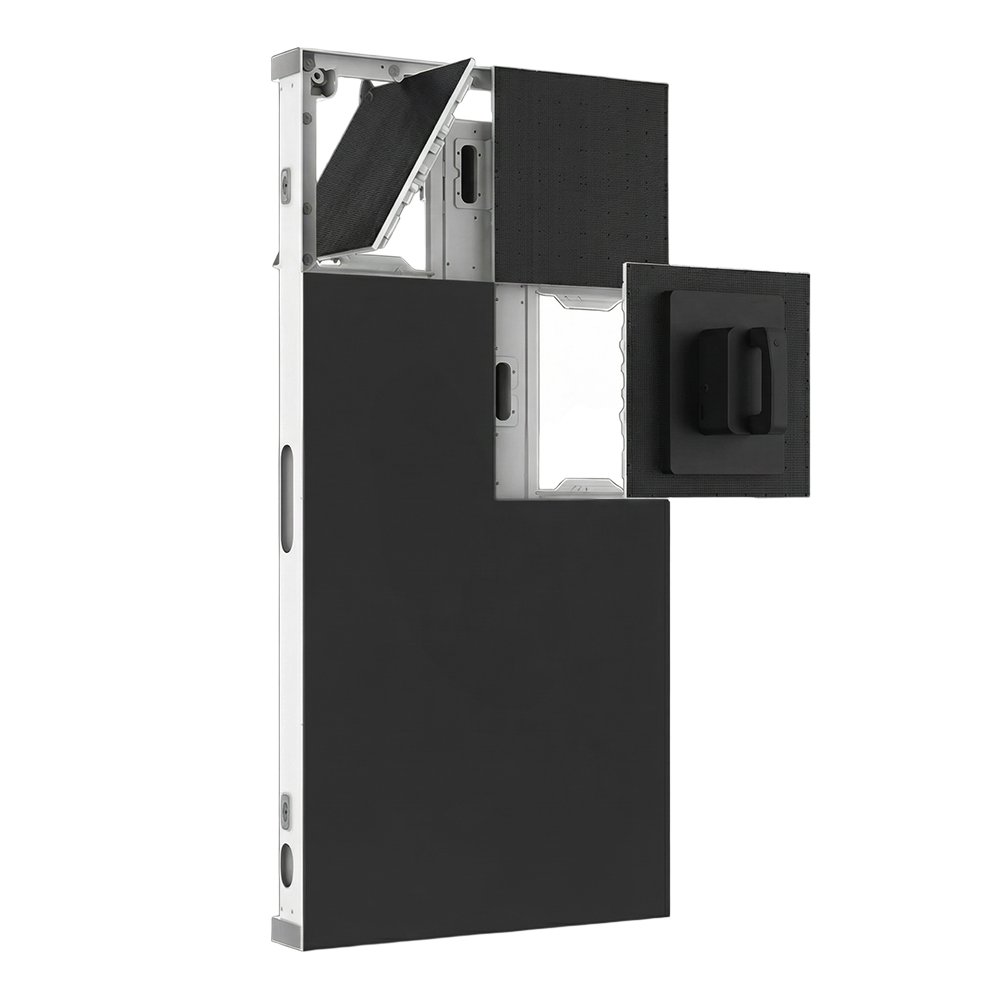

Dual Maintenance Access
Front and rear serviceability
Modules, PSU, and system cards accessible
60-second module replacement
Fanless Cooling System
Silent operation (0dB noise)
Natural aluminum heat dissipation
Extended lifespan in dusty environments
Flexible Cabinet Sizes
Three standard dimensions
Custom sizes available
Easy dimension planning for projects
3D Display Support
90° right-angle splicing
90° arc splicing capability
Naked-eye 3D content compatible
ECC Technology
Automatic error correction
Self-healing LED matrix
Maintains display quality without intervention
| Parameter | P1.56 | P1.95 | P2.6 | P2.97 | P3.91 |
|---|---|---|---|---|---|
| LED Type | SMD1112 | SMD1415 | SMD1415 | SMD1415 | SMD1415 |
| Pixel Density | 409,600/㎡ | 262,144/㎡ | 147,456/㎡ | 112,896/㎡ | 65,536/㎡ |
| Module Size | 250×250×19mm | 250×250×19mm | 250×250×19mm | 250×250×19mm | 250×250×19mm |
| Cabinet Size | 500×1000×84mm | 500×1000×84mm | 500×1000×84mm | 500×1000×84mm | 500×1000×84mm |
| Cabinet Weight | 16kg | 16kg | 16kg | 16kg | 16kg |
| Brightness | ≥5000 nits | ≥5000 nits | ≥5500 nits | ≥5500 nits | ≥6000 nits |
| Protection | IP66 | IP66 | IP66 | IP66 | IP66 |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Gray Scale | 14-bit | 14-bit | 16-bit | 16-bit | 16-bit |
| Max Power | 550W/㎡ | 550W/㎡ | 550W/㎡ | 550W/㎡ | 550W/㎡ |
| Avg Power | 186W/㎡ | 186W/㎡ | 186W/㎡ | 186W/㎡ | 186W/㎡ |
| Scan Mode | 1/40 | 1/32 | 1/24 | 1/21 | 1/8 |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Wall-Mounted Installation (No Steel Structure)
Direct mounting on concrete/brick walls
Eliminates external steel frame costs
Weight: Only 16kg per 0.5㎡ cabinet
Wind resistance: Grade 10
Stacking Installation
Quick-lock system for vertical stacking
Up to 30 cabinets high (15 meters)
No visible seams between units
Modular expansion flexibility
Hanging Installation
Four rigging points per cabinet
Suitable for temporary events
Standard truss compatibility
Safety cable attachment included
Freestanding Installation
Ground support structure available
Double-sided display option
Mobile rental cart compatible
Quick assembly design
| Specification | Details |
|---|---|
| Product Name | XOF-Pro Standard Outdoor LED Display |
| Series | XOF Pro HD Series |
| Category | Small Pixel Pitch Outdoor LED |
| Origin | Shenzhen, China |
| Certification | CE / FCC / RoHS / IP66 / ETL |
| Warranty | 5 years standard (10-year optional) |
| Lead Time | 10-15 business days |
| MOQ | 5㎡ (10 cabinets minimum) |
| Packaging | Wooden case or flight case |
| Shipping Options | Sea Freight / Air Freight / DDP Available |
| Payment Terms | T/T / L/C / PayPal (B2B verified) |
| Customization | Cabinet size, brightness, content system |
| After-Sales Support | Remote support, on-site service available |
