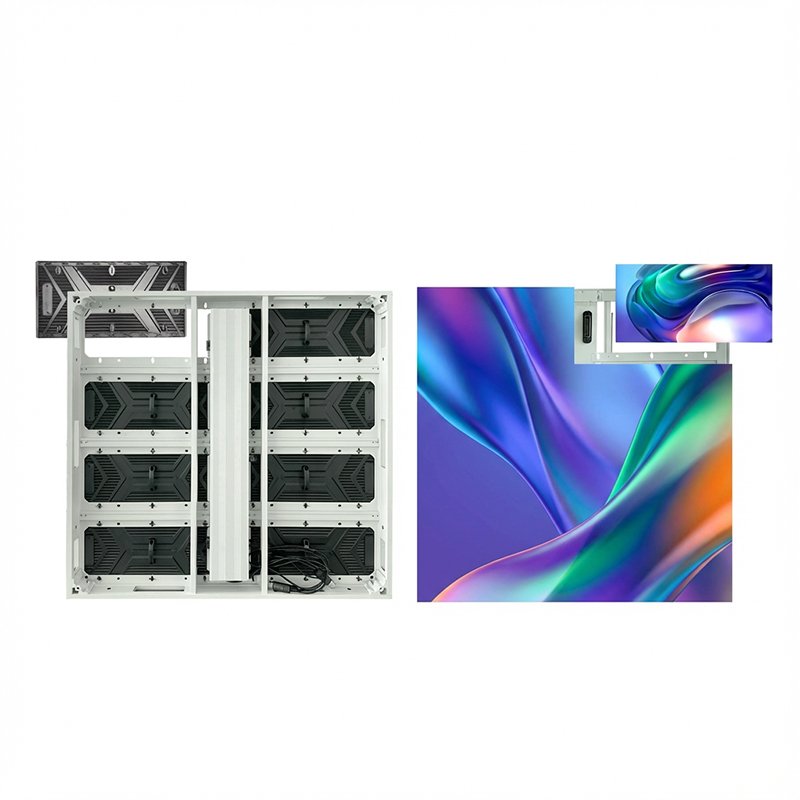

XOF-Elite Ultra High Brightness Outdoor LED Billboard (6000-10000 nits) for DOOH advertising. IP65 w
6000-10000 cd/m²
3840Hz / 7680Hz
IP65
Easy to move
Front & Rear Access
Fanless Design
30% Energy Saving
Die-Cast Aluminum
Ultra-High Brightness
6,000-10,000 nits output ensures daylight readability
Automatic brightness adjustment via ambient light sensor
Maintains color accuracy across all brightness levels
30% Energy Savings
Common Cathode technology reduces power consumption
Average 200W/㎡ vs. traditional 350W/㎡
Lower electricity costs for 24/7 operation
Lightweight Design
27kg cabinet (35% lighter than competitors)
Reduces building structural load requirements
Lower transportation and labor costs
Dual Maintenance Access
Front and rear serviceability options
Pin-connection modules—no tools required
Single technician can replace modules in 60 seconds
IP65 Weatherproof
Fully sealed against rain, dust, and snow
Operates in -40°C to 60°C extremes
100,000-hour lifespan (11+ years 24/7)
Fast Installation
Quick-lock cabinet system (no screws)
Seamless splicing for perfect flatness
Multiple mounting options (wall/hanging/floor)
Arc Corner Compatibility
Create curved displays for columns/corners
Right-angle and round-corner connections
Unlimited creative design possibilities
| Parameter | Specification |
|---|---|
| Cabinet Size | 1000×1000×83mm |
| Cabinet Weight | 27kg (aluminum frame) |
| Cabinet Resolution | 96×96 to 336×336 dots (varies by pitch) |
| Brightness | 6,000-10,000 cd/㎡ (adjustable) |
| LED Type | SMD1415 / SMD1921 / SMD2727 |
| Viewing Angle | 140°(H) × 140°(V) |
| Refresh Rate | 3840Hz / 7680Hz |
| Gray Scale | 13/14-bit |
| Contrast Ratio | 5000:1 |
| Color Temperature | 2000-10000K (adjustable) |
| Power Consumption | Max 650W/㎡, Avg 200W/㎡ (Common Cathode) |
| Input Voltage | AC 100-240V (auto-switching) |
| IP Rating | IP65 (front & rear) |
| Operating Temp | -40°C to +60°C |
| Operating Humidity | 10%-90% RH |
| Control System | NovaStar / Colorlight compatible |
| Connectivity | RJ45 Ethernet, Fiber optic optional |

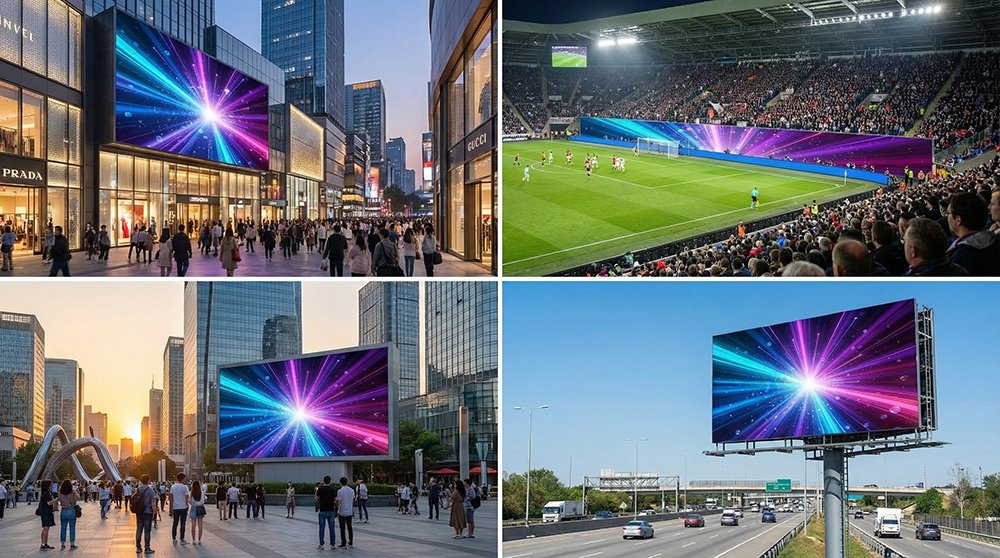

Wall-Mounted Installation
Steel mounting brackets included
Suitable for concrete/brick facades
Wind resistance: Grade 12 (hurricane-proof)
Hanging Installation
Rigging points: 4 per cabinet
Suitable for temporary events/concerts
Compatible with standard truss systems
Floor Standing
Ground support structure available
Freestanding towers up to 6m height
Quick assembly with no foundation required
Stacking Installation
Vertical stacking up to 20 cabinets
Fast-lock system connects in seconds
No visible gaps between cabinets
| Specification | Details |
|---|---|
| Product Name | XOF-Elite Ultra High Brightness Outdoor LED Billboard |
| Series | XOF Max Professional Series |
| Origin | Shenzhen, China |
| Certification | CE / FCC / RoHS / IP65 / ETL |
| Warranty | 5 years standard (Extended 10-year available) |
| Lead Time | 15-20 business days |
| MOQ | 10㎡ (10 cabinets) |
| Packaging | Flight case (6 or 8 cabinets per case) |
| Shipping Options | Sea Freight / Air Freight / DDP Available |
| Payment Terms | T/T / L/C / PayPal (B2B verified) |
