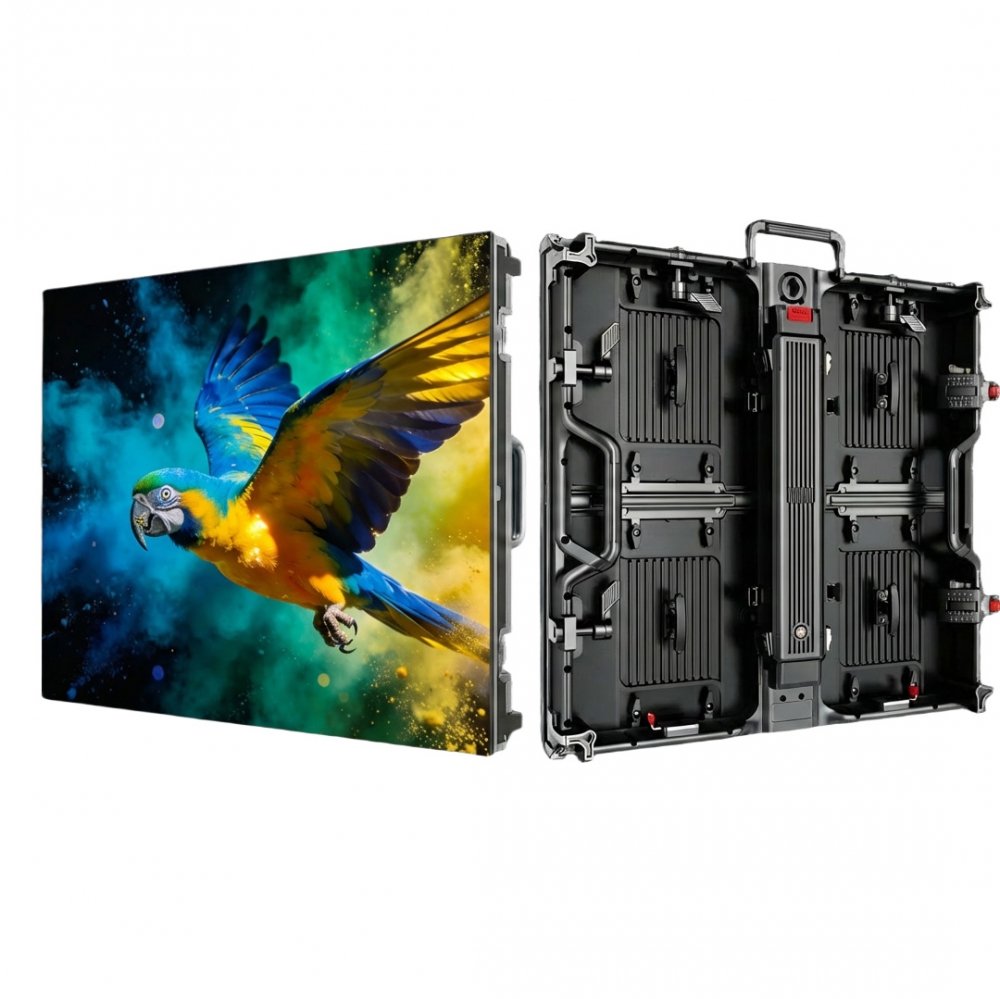

576mm Large Rental LED Display P3-P6 - High Efficiency Installation for Concerts & Stadiums

1. 576mm large cabinet format: Reduces total cabinet count and seam lines for faster screen assembly and cleaner visual appearance.
2. ​Lightweight 8kg cabinet: Simplifies transportation and rigging for touring events; reduces structural load requirements.
3. ​Universal 288mm module: Interchangeable left/right modules enhance maintenance efficiency and reduce spare parts complexity.
4. ​Front & rear serviceable: Allows technicians to replace modules from either side without full screen disassembly.
5. ​Quick-lock installation system: Up-down quick locks, curved locks, and corner protectors speed up assembly and teardown.
6. ​Indoor & outdoor models: IP40/21 (indoor) and IP65 (outdoor) ratings support diverse venue requirements.
7. ​High refresh rate (3840Hz): Ensures flicker-free performance for professional broadcast and camera capture.
8. ​Flexible splicing: Supports flat, curved, and right-angle connections for creative stage designs (cylinder, wave, interlaced).
9. ​10m stacking/hanging capability: Accommodates typical rental event heights with stacking or rigging installation.
10. ​Wide viewing angle (140°/140°): Maintains consistent color and brightness for stadium and outdoor audiences.

• Cabinet size: 576×576×68mm
• ​Module size: 288×288mm
• ​Cabinet weight: 8kg
• ​Pixel pitch options: 3.0mm / 3.79mm / 3.84mm / 4.8mm / 4.81mm
• ​Pixel density: 110,889 ~ 27,889 pixels/m² (varies by model)
• ​Brightness: 900 cd/m² (indoor), 4000 cd/m² (outdoor)
• ​Viewing angle: 140° (H) / 140° (V)
• ​Refresh rate: 3840Hz
• ​Gray scale: 14-bit
• ​Contrast ratio: 5000:1 / 4000:1
• ​Color temperature: Adjustable
• ​Input voltage: AC 100-240V
• ​Power consumption: 550W/175W (average/max, varies by model) to 750W/250W
• ​IP rating: IP40/21 (indoor), IP65 (outdoor)
• ​Lifespan: 100,000 hours
• ​Serviceability: Front & rear
• ​Curvature: Standard arc angles -10° / -5° / 0° / +5° / +10° / +15°

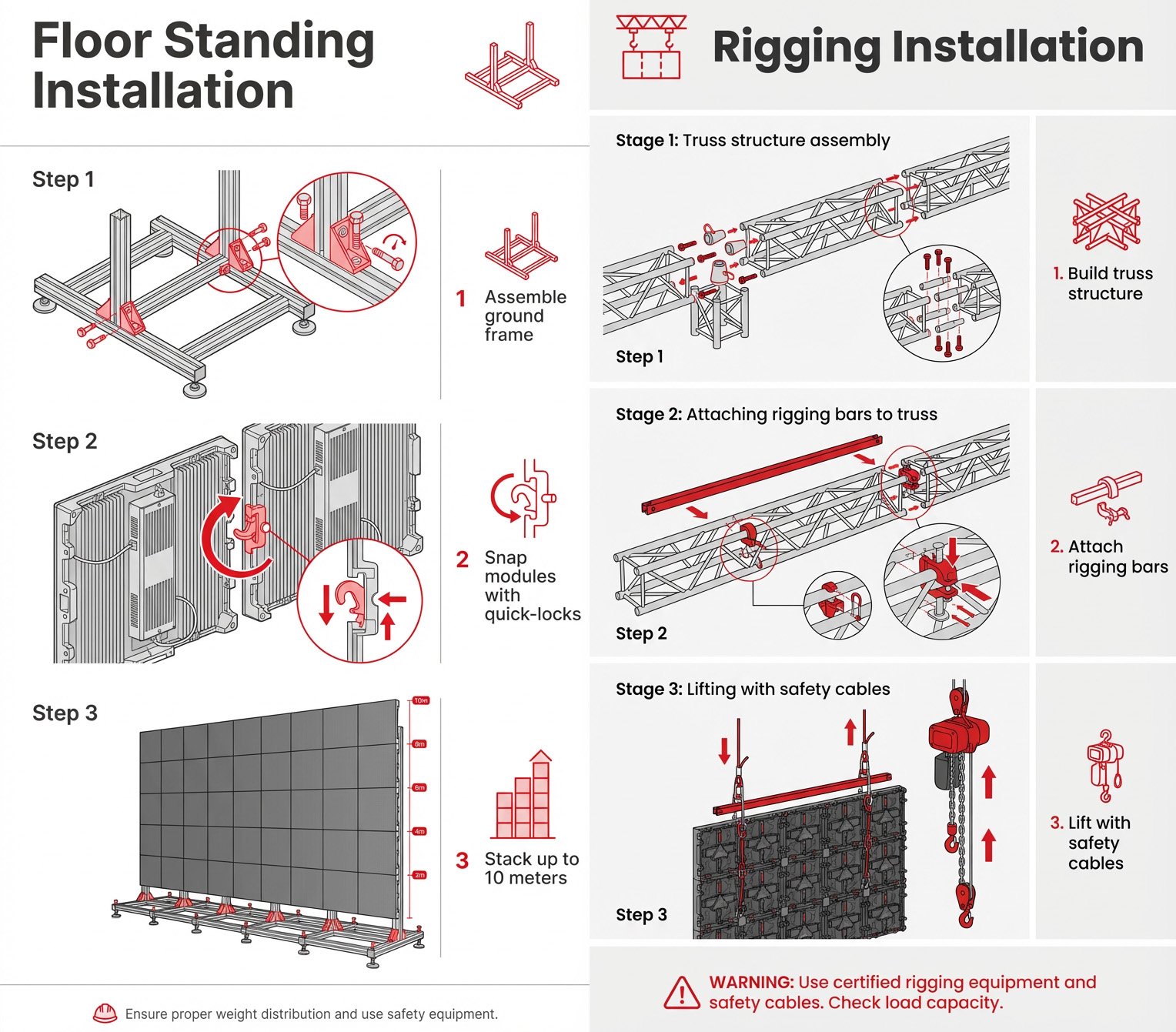

Stacking installation: Up to 10m maximum height

​Hanging/rigging installation: Up to 10m maximum height

​Connection types: Flat splicing, curved splicing, right-angle connection, cylinder connection, wave connection, interlaced connection

​Quick-lock mechanism: Up-down quick lock, curved lock, corner protector for fast assembly

​
