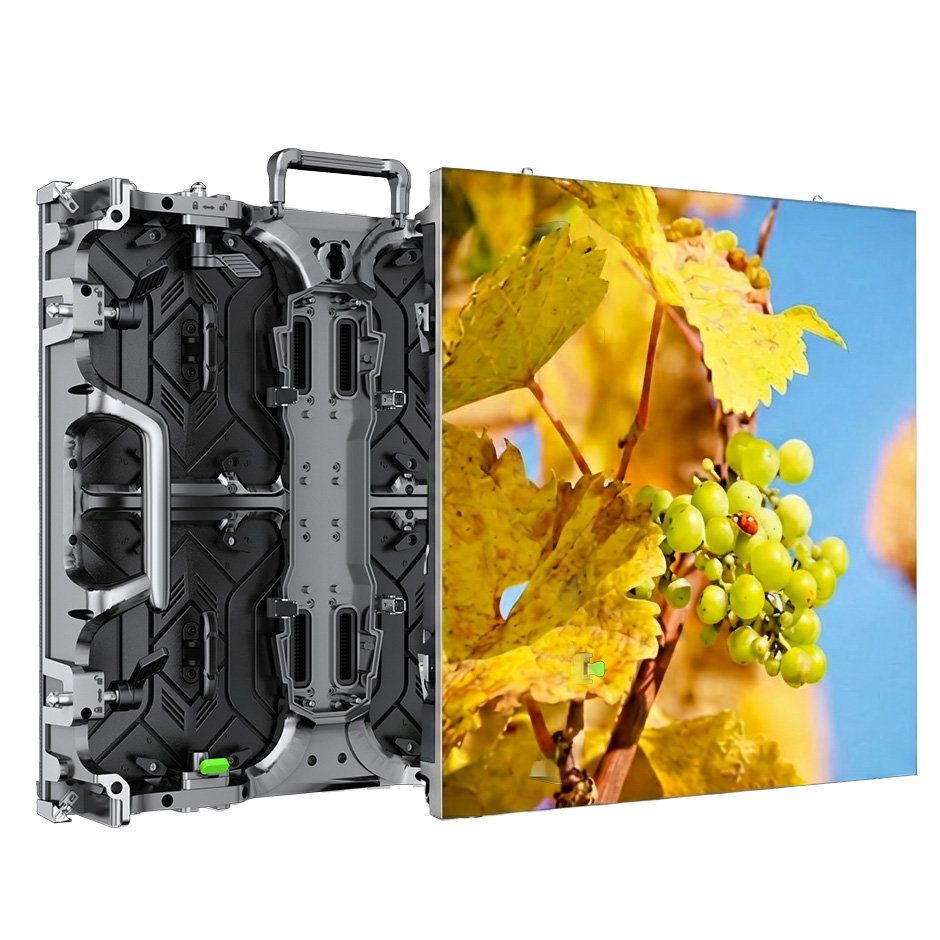

500x500mm Rental LED Display P1.9-P3.9 - Indoor & Outdoor Event Screen IP30/IP65

40% Lighter Than Traditional Die-Cast Cabinets

7.5kg per 500×500mm cabinet vs 11–13kg industry average. 500×1000mm cabinet weighs 12.5kg versus 20–22kg industry norms.

Quantified Impact:

● Transport: Fit 25% more cabinets per truck (32 vs 24 per standard truck)

● Rigging: Reduce truss load requirements by 40%

● Labor: 2-person crew handles what previously required 3 people

● Insurance: Lower premiums due to reduced weight-related injury risks

Real-World: A 100㎡ screen (400 cabinets) weighs 3,000kg total instead of 5,000kg—use lighter-duty truss systems and avoid expensive structural engineering at many venues.

55% Lower Total Cost of Ownership Over 5 Years

Universal module architecture means one power supply, one hub card, one connector set serves all four pixel pitch variants.

TCO Breakdown (200㎡ rental inventory):

● Initial Purchase: $180,000 (traditional) vs $170,000 (XRD) - Save 6%

● Spare Parts (5yr): $45,000 vs $11,250 - Save 75%

● Maintenance Labor: $28,000 vs $12,000 - Save 57%

● Transport/Storage: $35,000 vs $23,000 - Save 34%

● Energy Costs (5yr): $22,000 vs $15,000 - Save 32%

● Total 5-Year TCO: $310,000 vs $231,250 - Save $78,750 (25%)

3× Faster Setup Speed

15-second cabinet connection with zero tools vs 45-60 seconds industry average requiring Allen keys and 2-person coordination.

Setup Time (50㎡ Screen - 200 Cabinets):

● Traditional: 50 sec/cabinet, 4 people, 6.5 hours total

● XRD Quick-Lock: 15 sec/cabinet, 2 people, 2 hours total

● Time Saved: 70% faster, 50% fewer crew, 4.5 hours saved

IP30/IP65 Dual Version Expands Market by 80%

Identical cabinets in IP30 (indoor) and IP65 (outdoor) with same connectors, weight, dimensions. Stock both versions and serve any project without turning away clients.

Market Expansion:

● Indoor Corporate: Dedicated IP20 inventory → XRD IP30

● Outdoor Festivals: Separate IP65 inventory → XRDO IP65

● Mixed Events: Turn away or subrent → Stock both versions

● Emergency Weather: Project cancellation → Swap IP30→IP65

Zero Flicker at 7680Hz Wins Broadcast Contracts

7,680Hz refresh rate (double the 3,840Hz standard) eliminates scan lines when filmed with any camera—from iPhones to RED cinema cameras at 120fps.

Competitive Advantage:

● Corporate Hybrid Events: Qualified

● Broadcast TV Studio: Qualified (competitors not qualified)

● Live Concert Streaming: Fully qualified (competitors marginal)

● Virtual Production (XR): Qualified (competitors not qualified)

03 PARAMETERS

Display Performance

Pixel Pitch: 1.953mm / 2.6mm / 2.97mm / 3.91mm (Four models)

Pixel Density: 278,784/㎡ (P1.9) to 65,536/㎡ (P3.9)

LED Type:

● Indoor - SMD1515 (P1.9/2.6/2.9), SMD2020 (P3.9)

● Outdoor - SMD1415 (P2.6/2.9), SMD1921 (P3.9)

Module Resolution: 128×128 (P1.9), 96×96 (P2.6), 84×84 (P2.9), 64×64 (P3.9)

Cabinet Resolution 500×500mm: 256×256 (P1.9), 192×192 (P2.6), 168×168 (P2.9), 128×128 (P3.9)

Cabinet Resolution 500×1000mm: 256×512 (P1.9), 192×384 (P2.6), 168×336 (P2.9), 128×256 (P3.9)

Brightness:

● Indoor IP30: 900 cd/㎡ (P1.9), 4,000 cd/㎡ (P2.6-3.9)

● Outdoor IP65: 5,500 cd/㎡ (P2.6-3.9)

● Adjustable range: 2,000–10,000 nits

Contrast Ratio:

● Indoor: 4,000:1 (P1.9), 5,000:1 (P2.6-3.9)

● Outdoor: 7,000:1 (all models)

Viewing Angle: 140° horizontal / 140° vertical

Gray Scale: 13-bit / 14-bit

Refresh Rate: 3,840Hz / 7,680Hz (Programmable, camera-friendly)

Color Temperature: 2,000K–10,000K (Adjustable)

Optimal Viewing Distance: 2–20m (P1.9), 3–30m (P2.6), 3–35m (P2.9), 4–45m (P3.9)

Physical Specifications

Cabinet Dimensions: 500×500×68mm or 500×1000×68mm

Cabinet Weight: 7.5 kg (500×500) or 12.5 kg (500×1000)

Module Size: 250×250mm (universal across all pitches)

Cabinet Material: Die-Cast Aluminum ADC12

Surface Finish: Black powder coating, matte

Flatness Tolerance: ≤0.1mm between cabinets

Electrical Specifications

Input Voltage: AC 100–240V, 50/60Hz (Auto-switching)

Power Consumption:

● Indoor IP30: Max 750 W/㎡, Avg 250 W/㎡

● Outdoor IP65: Max 550 W/㎡, Avg 175 W/㎡

Power Connectors: Waterproof aviation plug (IP65-rated)

PSU Type: Universal 200W (hot-swappable)

Power Factor: ≥0.95 (Active PFC)

Environmental Specifications

IP Rating:

● XRD Indoor: IP30 (front), IP21 (rear)

● XRDO Outdoor: IP65 (front), IP40 (rear)

Operating Temperature:

● Indoor: -10°C to +45°C

● Outdoor: -20°C to +50°C

Operating Humidity: 10%–95% RH (non-condensing)

LED Lifespan: 100,000 hours (to 70% brightness)

Max Stacking Height: 10 meters

Max Hanging Height: 10 meters (with certified rigging)

Cabinet size options: 500×500×68mm and 500×1000×68mm.

​Pixel pitch options: P1.953 / P2.6 / P2.97 / P3.91 (indoor), P2.6 / P2.97 / P3.91 (outdoor).

​Refresh rate: 3840–7680Hz.

​Input voltage: AC 100–240V.

​Serviceability: Front/Rear.

​IP rating: IP30 (indoor) / IP65 (outdoor).

​

LED Encapsulation: SMD1515/2020 (indoor), SMD1415/1921 (outdoor)

LED Brand: Nationstar / Kinglight (Tier-1)

Pixel Configuration: 1R1G1B (true color, non-virtual)

Module Dimensions: 250×250×15mm (universal)

Cabinet Material: ADC12 die-cast aluminum

Drive Method: Constant current drive

Driver IC: ICN2038S / ICN2053 / MBI5153 (PWM high-refresh)

Scan Mode: 1/16 (P1.9), 1/8 (P2.6-2.9), 1/4 (P3.9)

Control Interface: Gigabit Ethernet (RJ45) + Optional 10G fiber

Signal Input: DVI / HDMI / DP / SDI (via NovaStar controller)

Receiving Cards Compatible: NovaStar A5s / A8s / A10s / A10s Plus / A10s Plus-N

Controllers Compatible:

● Entry: MCTRL 600/660/700 (2.3M pixels)

● Professional: MX20/30/40 Pro COEX (up to 9M pixels)

● Enterprise: VX400/600/1000/2000 Pro (up to 13M pixels)

Communication Protocols: TCP/IP, HTTP, SNMP, Art-Net, VICP

Max Cabinets per Port: ~10 (depends on pixel pitch)

Curvature Range: -15° to +15° (7 preset angles)

Minimum Cylinder: 1.2m diameter (8× 500×500mm)

Certifications: CB, ETL (UL/cUL), TUV, FCC Part 15 Class A, CE-EMC, KC, RoHS, REACH, ISO 9001
