This solution is designed to deliver a high-brightness, high-reliability, high-value LED display for city-center commercial outdoor advertising screens, ensuring top-notch ad visibility and stable long-term operation even in harsh outdoor conditions.

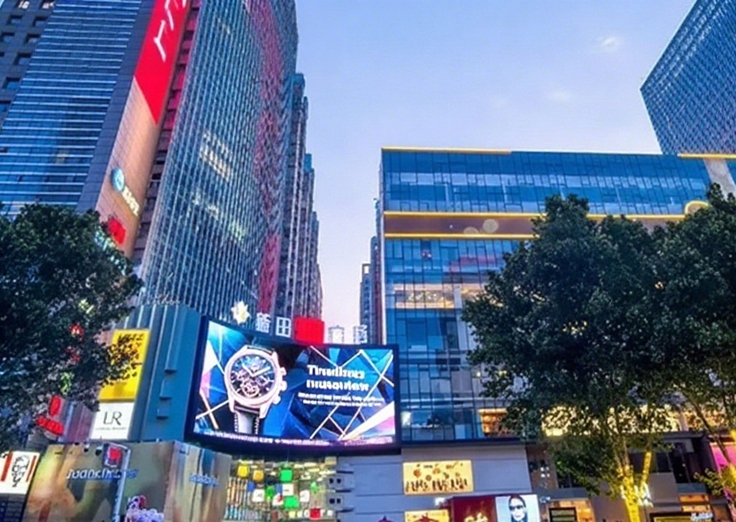

Outdoor Commercial LED Display for Exterior Walls
1. Core Requirements & Challenge Analysis
Outdoor Commercial LED Display for Exterior Walls
Core Requirements:
Maintain ultra-high visibility in strong ambient light (sunlight), display HD dynamic ads, attract mid- to long-distance pedestrian traffic (10–50m).Major Challenges:
Waterproofing, dustproofing, surviving temperature extremes, UV resistance, running long hours without interruption, easy maintenance, and minimizing light pollution.Solution Goal:
By choosing the optimal pixel pitch (Pitch) and a reliable module technology, we aim to maximize advertising effectiveness and return on investment.
Outdoor Commercial LED Display for Exterior Walls
2. Mainstream Module Technology Solutions Comparison
To accommodate different budget and performance needs, we offer two solution options with contrasting module technologies.
| Feature Dimension | Solution 1: Classic High Value (SMD) | Solution 2: Ultimate Reliability (GOB) |
|---|---|---|
| Core Module Technology | Outdoor SMD 3-in-1 | Outdoor SMD 3-in-1 + GOB Encapsulation (SMD+GOB) |
| Recommended Series | XOD Series (e.g. XOD8) | XOG Series (e.g. XOG8) |
| Pixel Pitch | P8mm | P8mm |
| Physical Size (suggested) | 10m (W) × 6m (H) | 10m (W) × 6m (H) |
| Physical Resolution | 1250 × 750 pixels | 1250 × 750 pixels |
| Core Advantages | Mature tech, market-proven, best value for money, low maintenance cost | Superb protection, longer lifespan, outstanding stability, extremely low failure rate |
| Customer Profile | Focus on initial investment return, seeking classic reliable solutions | Ample budget, ultra-high stability and maintenance-free requirements for premium brands |
3. Solution Details & Technical Specifications
(Shared by both plans—these are the building blocks for premium outdoor ad screens)
| Configuration Item | Recommended Spec | Design Rationale & User Value |
|---|---|---|
| Screen Type | Outdoor waterproof fixed LED display | Dedicated for outdoor environments—foundation of project success. |
| Brightness | ≥ 6500 cd/㎡, supports 0–100% auto adjustment | Key metric. Ensures vivid advertising in direct noon sunlight. Integrated light sensor auto-dims at night, saving energy, reducing light pollution, showing social responsibility. |
| Refresh Rate | ≥ 3840 Hz | Guarantees no flicker/scan lines for pedestrians, vehicles, phones, or broadcast cameras—improves ad quality and compatibility for viral sharing. |
| IP Protection Grade | IP65 (front) | Full dustproof, withstands low-pressure water jets from any direction—rainstorm, typhoon ready. |
| Cabinet Structure | Lightweight die-cast aluminum | Rigidity, superior heat dissipation, low weight—reduces façade load, ensures safety. |
| Control System | HD video processor + send card | 4K signal input, true color reproduction, remote group control and timed playlist capability. |
| Power System | Industrial N+1 redundant backup | Supports 24/7 non-stop operation—even if a power supply fails, screens keep running; reliability is top class. |
| Viewing Angle | Horizontal 140° / Vertical 140° | Ultra-wide angles—street viewers see accurate, distortion-free images from all directions. |
4. Core Module Technology Comparison & Selection Advice
| Comparison Item | Solution 1 (SMD Module – XOD8) | Solution 2 (GOB Module – XOG8) | Selection Recommendation |
|---|---|---|---|
| Tech Features | LEDs (R/G/B) directly mounted on PCB | Adds a transparent GOB (Glue on Board) layer | If environment is tough or durability is critical, pick Option 2 |
| Protection | High: Meets IP65 standard | Extreme: GOB fills gaps, boosts anti-collision, anti-damp, anti-dust, anti-salt, perfect for coastal, rainy, dusty, or impact-prone areas | |
| Stability & Lifespan | High: Mature tech, up to 100,000 hours | Extreme: GOB protects against vibration/temp/humidity, far longer life, slower light decay | For “zero downtime” brand image, pick Option 2 |
| Display Performance | Excellent: Vivid colors, high brightness | Superior: Slight convex surface, softer light, less mirror glare, better in daylight, less glare at night | For visual perfection, pick Option 2 |
| Upfront Cost | Lower | Higher | Budget-focused? Pick Option 1 |
| Long-term O&M Cost | Lower (easy repair) | Extremely low (minimal failures) | Minimize lifetime cost? Pick Option 2 |
5. Scene Optimization & Operation Advice
Content Is Key:
HD content only: Design images/videos for actual pixel resolution (1250 × 750), never stretch low-res files.
Creative simplicity: Follow the “3-second rule”—highlight logo, hero product, and key message, keep text concise.
Dynamic timing: Schedule ad content for different periods (workday/weekend/holidays) based on foot traffic.
Smart Maintenance:
Remote centralized management: Network-based on/off, content push, brightness control, fault alarms—minimize manual work.
Status monitoring: Real-time tracking of temperature, voltage, and current—enables preventive maintenance.
Safety & Compliance:
Structural safety: Load-bearing and wind resistance calculations must be done by accredited professionals.
Lightning/grounding: Install full lightning protection.
Brightness compliance: Automatic night dimming to meet local light pollution regulations.
6. Summary
No matter whether you choose the classic reliable XOD Series (SMD Solution) or the ultra-protected XOG Series (GOB Solution), XVisual provides commercial center outdoor advertising LED display solutions with fully professional standards.
XOD Series: Market-validated, ultimate value.
XOG Series: Unmatched stability and durability—future-proof partner for city landmarks.
We recommend selecting your solution based on project budget, geographic environment, and brand positioning.
We warmly invite you to discover the outstanding performance of XVisual LED modules. For product datasheets, quotations, or site survey requests for any series mentioned above, please contact us at any time.
